Android

Follow

This documentation is for the Countly Android SDK version 24.7.X. The SDK source code repository can be found here.

Click here, to access the documentation for older SDK versions.

The Countly Android SDK requires a minimum Android version of 5.0 (API Level 21).

To examine the example integrations please have a look here.

Adding the SDK to the Project

You need to use the MavenCentral repository to download the SDK package. If it is not included in your project, include it, with the following code:

buildscript {
  repositories {
      mavenCentral()
  }
}

Now, add the Countly SDK dependency (use the latest SDK version currently available from gradle, not specifically the one shown in the sample below).

dependencies {
  implementation 'ly.count.android:sdk:24.7.5'
}

SDK Integration

Before you can use any functionality, you have to initiate the SDK. That can be done either in your Application subclass (preferred), or from your main activity onCreate method.

Minimal Setup

The shortest way to initiate the SDK is with this call:

Countly.sharedInstance().init(new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL));

It is there that you provide the Android context, your appKey, and your Countly server URL. Please check here for more information on how to acquire your application key (APP_KEY) and server URL.

To configure the SDK during init, a config object called "CountlyConfig" is used. Configuration is done by creating such an object and then calling it's provided function calls to enable the functionality that you need. Afterwards, the particular config object is provided to the "init" method.

If you are in doubt about the correctness of your Countly SDK integration you can learn about the verification methods from here.

Adding callbacks

After the Countly.sharedInstance().init(...)call, you'll need to add the following calls to all your activities:

  • Call Countly.sharedInstance().onStart(this) in onStart, where this is a link to the current Activity.
  • Call Countly.sharedInstance().onStop() in onStop.
  • Call Countly.sharedInstance().onConfigurationChanged(newConfig) in onConfigurationChanged if you want to track the orientation changes.

If the "onStart" and "onStop" calls are not added, some functionalities will not work, e.g. automatic sessions will not be tracked. The Countly "onStart" has to be called in the activities "onStart" function, it cannot be called in "onCreate" or in any other place, otherwise, the application will receive exceptions.

Required App Permissions

Additionally, ensure the INTERNET and ACCESS_NETWORK_STATE permissions are set if there aren’t any, in your manifest file. Those calls should look something like this:

<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

SDK Logging

The first thing you should do while integrating our SDK is enable logging. If logging is enabled, then our SDK will print out debug messages about its internal state and encountered problems. Those messages may be screened in logcat and may use Android's internal log calls.

Call setLoggingEnabled on the config class to enable logging:

CountlyConfig config = (new CountlyConfig(appC, COUNTLY_APP_KEY, COUNTLY_SERVER_URL));
config.setLoggingEnabled(true);

For more information on where to find the SDK logs you can check the documentation here.

Crash Reporting

The Countly SDK for Android has the ability to collect crash reports, which you may examine and resolve later on the server.

In the SDK all crash-related functionality can be browsed from the returned interface on:

Countly.sharedInstance().crashes()

Automatic Crash Handling

To enable automatic crash reporting, call the following function on the config object. After init, this will enable crash reporting, which will automatically catch uncaught Java exceptions. They will be sent to the dashboard once the app is launched again and the SDK is initiated.

config.enableCrashReporting();

Automatic Crash Report Segmentation

You may add a key/value segment to crash reports. For example, you could set which specific library or framework version you used in your app. You may then figure out if there is any correlation between the specific library or another segment and the crash reports.

Use the following function for this purpose:

config.setCustomCrashSegment(Map<String, String> segments)

Handled Exceptions

You might catch an exception or similar error during your app’s runtime.

You may also log these handled exceptions to monitor how and when they are happening with the following command:

Countly.sharedInstance().crashes().recordHandledException(Exception exception);

If you have handled an exception and it turns out to be fatal to your app, you may use this call:

Countly.sharedInstance().crashes().recordUnhandledException(Exception exception);

Crash Breadcrumbs

Throughout your app you can leave crash breadcrumbs which would describe previous steps that were taken in your app before the crash. After a crash happens, they will be sent together with the crash report.

Following the command adds crash breadcrumb:

Countly.sharedInstance().crashes().addCrashBreadcrumb(String record)

Crash Filtering

There might be cases where a crash could contain sensitive information. For such situations, there is a crash filtering option that can discard or modify a crash.

To filter a crash you should provide a callback to the config object using the crashes.setGlobalCrashFilterCallback method during initialization. This callback will be called every time a crash is recorded.

The callback receives a CrashData object, which contains all the information about the crash that would be sent to the server:

class CrashData {
  String stackTrace;
  Map<String, Object> crashSegmentation;
  List<String> breadcrumbs;
  boolean fatal;
  Map<String, Object> crashMetrics;
}

- stackTrace: Concatenated stack trace with new lines.

- crashSegmentation: Combination of automatic crash report segmentation and segmentation given while recording the crash.

- breadcrumbs: List of recorded breadcrumbs.

- fatal: Indicates whether or not a crash is unhandled.

- crashMetric: Crash related metrics recorded by the SDK.

You can modify or filter the crash using the getter and setter methods provided by the CrashData. After modifying the crash, to send the crash to the server, you should return 'false.' If the callback returns 'true' the crash will be discarded:

config.crashes.setGlobalCrashFilterCallback(new GlobalCrashFilterCallback() {
  @Override
  public boolean filterCrash(CrashData crash) {
    // You may want to omit a secret from the stack trace to protect it
    crash.setStackTrace(crash.getStackTrace().replace("secret", "*****"));
    // or if crash segmentation contains a secret key, it can me omitted
    if (crash.getCrashSegmentation().containsKey("secret")) {
      // You can change a crash is handled or not
      crash.setFatal(false);
      // The secret value could be overridden easily to protect it
      crash.getCrashSegmentation().put("secret", "*****");
    }

    // Maybe when reporting crashes, only a device  permitted to report the crashes for testing or debugging
    if (crash.getCrashMetrics().containsKey("_device")) {
      // if metrics has a device other than an Android, discard crash
      Object device = crash.getCrashMetrics().get("_device");
      if (device instanceof String) {
        return !device.equals("Android");
      } else {
        // if value not found or not a string, discard the crash
        return true;
      }
    }
    return false;
  }
});

Recording all threads

If you would like to record the state of all other threads during an uncaught exception or during the recording of a handled exception, you can call this during init:

config.setRecordAllThreadsWithCrash();

Native C++ Crash Reporting

Due to the limitations of the dump_syms binary, C++ symbol extraction and automatic upoload of them is only supported on Linux devices.

Countly uses Google's Breakpad open source library to be able to report crashes that occurred within the C++ components of your application, assuming there are any. Breakpad provides:

  • a tool for creating symbol files from your object files (dump_syms)
  • the ability to detect and record crashes via compact minidump files (crash handler)
  • a tool for generating human readable stack traces by using symbol files and crash minidump files.

Countly provides the sdk_native Android library to add crash handler to your native code and create crash minidump files. The SDK will check for those minidump files and send them automatically to your Countly server upon application start. You would download sdk_native from the MavenCentral repository and include it in your project, similar to how you included our SDK (please change the LATEST_VERSION below by checking our Maven page, currently 23.8.3):

// build gradle file
repositories {
  mavenCentral()
}

dependencies {
  implementation 'ly.count.android:sdk-native:LATEST_VERSION'
}

Then call our init method as early as possible in your application life cycle to be able to catch crashes that occur during initialization:

import ly.count.android.sdknative.CountlyNative;

CountlyNative.initNative(getApplicationContext());

getApplicationContext() is needed to determine a storage place for minidump files.

Symbolication

You may create Breakpad symbol files yourself and upload them to your Countly server using our UI. They will be needed to create stack traces from minidump files. Countly also developed a Gradle plugin to automate this process. To use the upload plugin in Studio, you first need to include it:

Automatic symbol file upload

build.gradle build.gradle.kts
plugins {
  id "ly.count.android.plugins.upload-symbols" version "24.7.5"
}

If you have root level gradle file and want to enable the plugin for sub-projects, add apply false to the end of the lines. And in sub-projects add it to plugins block without version part.

build.gradle build.gradle.kts
// in root level gradle file
plugins {
  id "ly.count.android.plugins.upload-symbols" version "24.7.5" apply false
}

// in sub-project gradle file
plugins {
  id "ly.count.android.plugins.upload-symbols"
}

If you do not have plugins block in sub-projects, you can add them via:

build.gradle build.gradle.kts
apply plugin: ly.count.android.plugins.UploadSymbolsPlugin

Then you will need to configure a Gradle Countly block for the plugin:

build.gradle build.gradle.kts
countly {
  server "https://YOUR_SERVER"
  app_key "YOUR_APP_KEY"
}

Next, you will have two new Gradle tasks available to you: uploadJavaSymbols and uploadNativeSymbols. uploadJavaSymbols is for uploading the mapping.txt file generated by Proguard. After building your project, you may run these tasks through Studio's Gradle tool window (1). They will be available under your app (2) and grouped as Countly tasks (3).

Another option is to run them from the command line:

./gradlew uploadNativeSymbols

// or if you have subprojects

./gradlew :project-name:uploadNativeSymbols

You may also configure your build so these tasks will run after every build (leave out the task which is not required for you):

tasks.whenTaskAdded { task ->
  if (task.name.startsWith('assemble')) {
    //this would upload your Java mapping file
    task.dependsOn('uploadJaveSymbols')

    //this would upload your native (c++) symbols
    task.dependsOn('uploadNativeSymbols')
  }
}

In addition, you may also override some default values in the Countly block in an effort to specify your server and app info.

build.gradle build.gradle.kts
countly {
  // required by both tasks
  server "https://try.count.ly"
  app_key "XXXXXX"  // same app_key used for SDK integration

  // optional properties for uploadJavaSymbols. Shown are the default values.

  // location of mapping.txt file relative to project build directory
  mappingFile "outputs/mapping/release/mapping.txt"

  // note that will be saved with the upload and can be checked in the UI
  noteJava "sdk-plugin automatic upload of mapping.txt"

  // optional properties for uploadNativeSymbols. Shown are the default values.

  // directory of .so files relative to project build directory.
  // you can check the tar.gz file created under intermediates/countly
  // BUILD_TYPE could be debug or release
  nativeObjectFilesDir "intermediates/merged_native_libs/BUILD_TYPE"

  // path for breakpad tool dump_syms executable
  dumpSymsPath "/usr/bin/dump_syms" // note that will be saved with the upload and can be checked in the UI noteNative "sdk-plugin automatic upload of breakpad symbols" }
}

It is possible that two of these properties will need to be configured manually: dumpSymsPath and nativeObjectFilesDir. The plugin assumes you will run the task after a release build. To test it for debug builds, please change nativeObjectFilesDir to "intermediates/cmake/debug/obj" (or to wherever your build process puts .so files under the build directory).

We created a sample app in our github repo that demonstrates both how to use SDK-native and our upload plugin.

Events

An event is any type of action that you can send to a Countly instance, e.g. purchases, changed settings, view enabled, and so on. This way it's possible to get much more information from your application compared to what is sent from the Android SDK to the Countly instance by default.

All data passed to the Countly server via the SDK or API should be in UTF-8.



In the SDK all event-related functionality can be browsed from the returned interface on:

Countly.sharedInstance().events()

When providing segmentation for events, the following primitive data types are supported: "String," "Integer," "Double," and "Boolean." Additionally, arrays, Lists, and JSONArrays composed of these primitive types are also supported. Please note that no other data types will be recorded.

Recording Events

We have provided an example of recording a purchase event below. Here is a quick summary of the information with which each usage will provide us:

  • Usage 1: how many times the purchase event occurred.
  • Usage 2: how many times the purchase event occurred + the total amount of those purchases.
  • Usage 3: how many times the purchase event occurred + from which countries and application versions those purchases were made.
  • Usage 4: how many times the purchase event occurred + the total amount, both of which are also available, segmented into countries and application versions.
  • Usage 5: how many times the purchase event occurred + the total amount, both of which are also available, segmented into countries and application versions + the total duration of those events.

1. Event key and count

Countly.sharedInstance().events().recordEvent("purchase", 1);

2. Event key, count, and sum

Countly.sharedInstance().events().recordEvent("purchase", 1, 0.99);

3. Event key and count with segmentation(s)

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().events().recordEvent("purchase", segmentation, 1);

4. Event key, count, and sum with segmentation(s)

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().events().recordEvent("purchase", segmentation, 1, 0.99);

5. Event key, count, sum, and duration with segmentation(s)

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().events().recordEvent("purchase", segmentation, 1, 0.99, 60);

Those are only a few examples of what you can do with events. You may extend those examples and use Country, app_version, game_level, time_of_day, and any other segmentation that will provide you with valuable insights.

Timed Events

It's possible to create timed events by defining a start and a stop moment.

String eventName = "Some event";

//start some event
Countly.sharedInstance().events().startEvent(eventName);
//wait some time

//end the event
Countly.sharedInstance().events().endEvent(eventName);

You may also provide additional information when ending an event. However, in that case, you have to provide the segmentation, count, and sum. The default values for those are "null", 1 and 0.

String eventName = "Some event";

//start some event
Countly.sharedInstance().events().startEvent(eventName);
//wait some time

Map<String, String> segmentation = new HashMap<>();
segmentation.put("wall", "orange");

//end the event while also providing segmentation information, count and sum
Countly.sharedInstance().events().endEvent(eventName, segmentation, 4, 34);

You may cancel the started timed event in case it is not relevant anymore:

//start some event
Countly.sharedInstance().events().startEvent(eventName);
//wait some time

//cancel the event
Countly.sharedInstance().events().cancelEvent(eventName);

Past Events

In the previous examples, the event creation time is recorded once the event is created.

In some use cases, you might want to cache and store events by yourself and then record them in the SDK with a past timestamp. The timestamp is a Unix timestamp stored in milliseconds. For that you would use:

Countly.sharedInstance().events().recordPastEvent(key, segmentation, count, sum, dur, timestamp)

Sessions

Automatic Sessions

Countly Android SDK comes with built in automatic session tracking functionality. Only thing necessary for this functionality to work is to add the proper calls to your activities after initializing the SDK. For more information you can check here.

Manual Sessions

Sometimes it might be preferable to control the session manually instead of relying on the SDK.

It can be enabled during init with:

config.enableManualSessionControl();

Afterwards it is up to the implementer to make calls to:

  • Begin session
  • Update session duration
  • End session (also updates duration)

The appropriate call to do that are:

Countly.sharedInstance().sessions().beginSession();
Countly.sharedInstance().sessions().updateSession();
Countly.sharedInstance().sessions().endSession();

By default, you should do some session call every 60 seconds after beginning a session so that it is not closed server side. If you would want to increase that duration, you would have to increase the "Maximal Session Duration" in your server API configuration.

Hybrid Mode

You can modify the manual session control by giving the control of updateSession calls to the SDK. This way you would only need to call beginSession and endSession methods and SDK would handle the rest.

// after enabling manual sessions
config.enableManualSessionControlHybridMode();

View Tracking

In the SDK all view related functionality can be browsed from the returned interface on:

Countly.sharedInstance().views()

While going to the background, all running views will be automatically stopped, and while coming to the foreground, all stopped views will be automatically started.

Automatic Views

View tracking is a way to report every screen view to the Countly dashboard. In order to enable automatic view tracking, call:

config.enableAutomaticViewTracking();

The tracked views will use the full activity names which include their package name. It would look similar to "com.my.company.activityname".

It is possible to use short view names that make use of the simple activity name. This would look like "activityname". To use this functionality, call this before calling init:

config.enableAutomaticViewShortNames();

If you want to add segmentation to all your automatic views, please have a look here.

If you want to exclude certain activities from automatic view tracking, you can let the SDK know during initialization by passing them in an array:

config.setAutomaticViewTrackingExclusions(Class[] exclusions);

Manual View Recording

The SDK provides various ways to track views. You can have a single view at a given time or track multiple views according to your needs. Each view would have its own unique view ID which could be used for manipulating the view further.

Auto Stopped Views

An easy way to track views is with using the auto stopped views. These views would stop if another view starts. You can start an auto stopped view with or without segmentation like this:

// without segmentation
Countly.sharedInstance().views().startAutoStoppedView("View Name");

// Or with segmentation
Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().startAutoStoppedView("View Name", segmentation);

It would return a string view ID:

String id = Countly.sharedInstance().views().startAutoStoppedView("View Name");

Regular Views

Opposed to "auto stopped views", with regular views you can have multiple of them started at the same time, and then you can control them independently.

You can start a view that would not close when another views starts like this:

Countly.sharedInstance().views().startView("View Name");

While manually tracking views, you may add your custom segmentation to them like this:

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().startView("View Name", segmentation);

These views would also return a string view ID when they are called.

Stopping Views

You can stop a view with its name or its view ID. To stop it with its name:

Countly.sharedInstance().views().stopViewWithName("View Name");

You can provide a segmentation while doing so:

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().stopViewWithName("View Name", segmentation);

If there are multiple views with the same name (they would have different identifiers) but if you try to stop one with that name the SDK would close one of those randomly.

To stop a view with its view ID:

Countly.sharedInstance().views().stopViewWithID("View ID");

You can provide a segmentation while doing so:

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().stopViewWithID("View ID", segmentation);

You can also stop all running views at once with a segmentation:

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().stopAllViews(segmentation);

Pausing and Resuming Views

If you are starting multiple views at the same time it might be necessary for you to pause some views while others are still continuing. This can be achieved by using the unique identifier you get while starting a view.

Pausing and resuming views will only impact a single view, ensuring it receives the correct duration.

To pause a view with its ID:

Countly.sharedInstance().views().pauseViewWithID("View ID");

To resume a view with its ID:

Countly.sharedInstance().views().resumeViewWithID("View ID");

Adding Segmentation to Started Views

You can add segmentation values to a view before it ends. This can be done as many times as desired and the final segmentation that will be send to the server would be the cumulative sum of all segmentations. However if a certain segmentation value for a specific key has been updated, the latest value will be used.

To add segmentation to a view using its view ID:

String viewID = Countly.sharedInstance().views().startView("View Name");

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().addSegmentationToViewWithID(viewID, segmentation);

To add segmentation to a view using its name:

String viewName = "View Name";
Countly.sharedInstance().views().startView(viewName);

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().addSegmentationToViewWithName(viewName, segmentation);

Global View Segmentation

You can set a global segmentation to be send with all views when it ends:

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().setGlobalViewSegmentation(segmentation);

You can update this segmentation any time you want:

Map<String, Object> segmentation = new ConcurrentHashMap<>();
segmentation.put("country", "Germany");
segmentation.put("app_version", "1.0");
segmentation.put("rating", 10);
segmentation.put("precision", 324.54678d);
segmentation.put("timestamp", 1234567890L);
segmentation.put("clicked", false);
segmentation.put("languages", new String[] { "en", "de", "fr" });
segmentation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
segmentation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));

Countly.sharedInstance().views().updateGlobalViewSegmentation(segmentation);

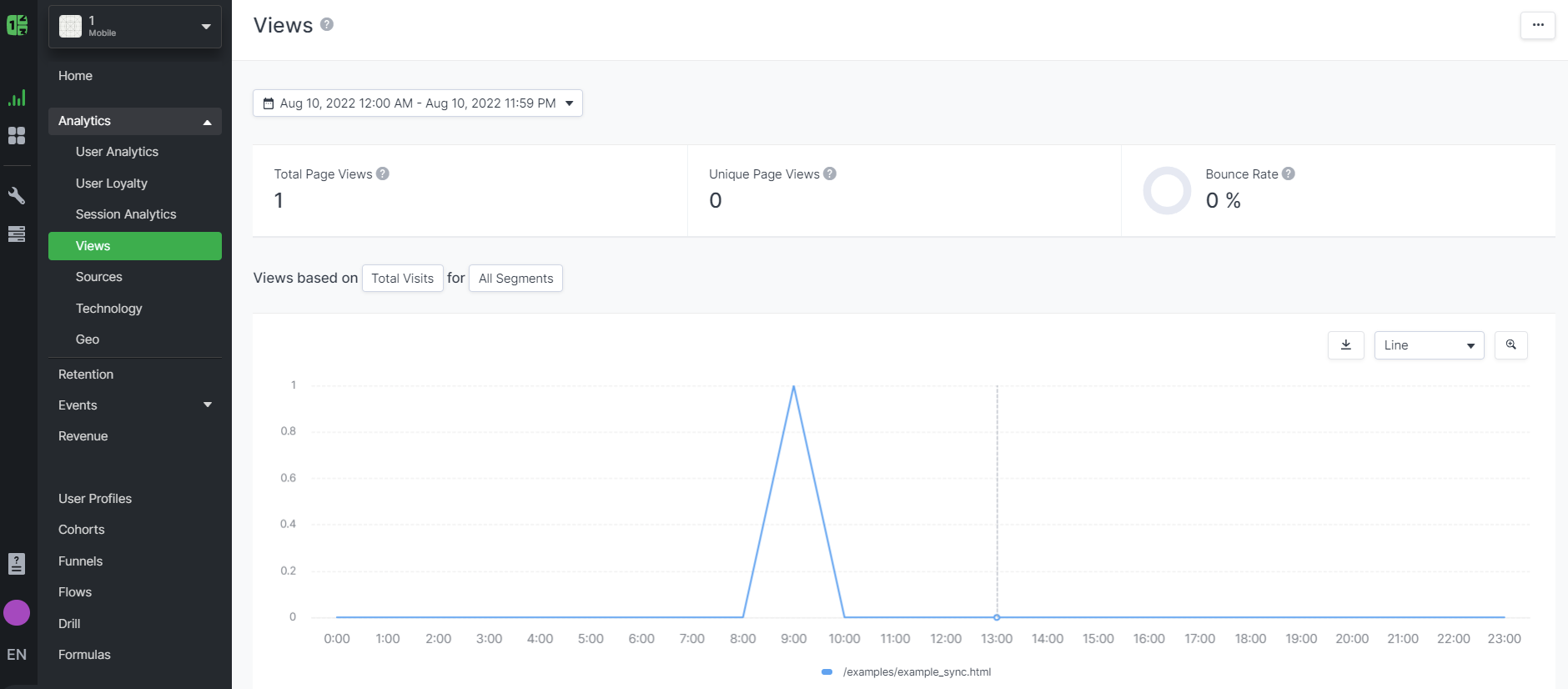

To review the resulting data from view tracking, open the dashboard and go to Analytics > Views. For more information on how to use view tracking data to its fullest potential, click here.


Device ID Management

All tracked information is tied to a "device ID". A device ID is a unique identifier for your users. When the SDK is initialized the first time and no custom device ID is provided, a random one will be generated. For most use cases that is enough as it provides a random identity to one of your apps users.

One of the first things you'll need to decide is which device ID generation strategy to use. There are several options defined below:

The easiest method is letting the Countly SDK seamlessly handle the device ID on its own. You may then use the following calls. It will use the default strategy, which currently is OpenUDID.

CountlyConfig config = (new CountlyConfig(appC, COUNTLY_APP_KEY, COUNTLY_SERVER_URL));
Countly.sharedInstance().init(config);

You may specify the device ID by yourself if you have one (it has to be unique for each device). It may be an email or some other internal ID used by your other systems.

CountlyConfig config = (new CountlyConfig(appC, COUNTLY_APP_KEY, COUNTLY_SERVER_URL));
config.setDeviceId("YOUR_DEVICE_ID");
Countly.sharedInstance().init(config);

Changing Device ID

You can change the device ID of an user with setID method:

Countly.sharedInstance().deviceId().setID("newId");

This method's effect on the server will be different according to the type of the current ID stored in the SDK at the time you call it:

  • If current stored ID is DeviceIdType.OPEN_UDID then in the server all the information recorded for that device ID will be merged to the new ID you provide and old user with the DeviceIdType.OPEN_UDID ID will be erased.

  • If the current stored ID is DeviceIdType.DEVELOPER_SUPPLIED or DeviceIdType.TEMPORARY_ID then in the server it will also create a new user with this new ID if it does not exist.

If you need a more complicated logic or using the SDK version 24.4.1 and below then you will need to use this method mentioned here instead.

NOTE: The call will reject invalid device ID values. A valid value is not null and is not an empty string.

Temporary Device ID

In the previous ID management approaches, data is still sent to your server, but it adds user inflation risk if badly managed. The use of a temporary ID can help to mitigate such problems.

During app start or any time after init, you can enter a temporary device ID mode. All requests will be stored internally and not sent to your server until a new device ID is provided. In that case, all events created during this temporary ID mode will be associated with the new device ID and sent to the server.

To enable this mode during init, you would call this on your config object before init:

countlyConfig.enableTemporaryDeviceIdMode();

To enable temporary id after init, you would call:

Countly.sharedInstance().deviceId().enableTemporaryIdMode();

To exit temporary id mode, you would call either "changeDeviceIdWithoutMerge" or "changeDeviceIdWithMerge" or init the SDK with a developer supplied device ID.

Retrieving Current Device ID

You may want to see what device id Countly is assigning for the specific device and what the source of that id is. For that, you may use the following calls. The id type is an enum with the possible values of: "DEVELOPER_SUPPLIED", "OPEN_UDID", "TEMPORARY_ID".

String usedId = Countly.sharedInstance().deviceId().getID();
DeviceIdType idType = Countly.sharedInstance().deviceId().getType();

Push Notifications

For Android 13 (API 33) and higher you have to declare push notification permissions in you app's manifest file. For related documentation you can check here.

Also starting from Android 12 (API 31) notification trampoline is restricted. For more information you can click here.

Countly supports FCM (Firebase Cloud Messaging) and Huawei Push Kit as push notification service providers. The SDK doesn't have any direct dependencies on FCM or HMS libraries and uses reflection instead, so it's up to application developers to ensure correct dependencies are present (please refer to our Demo app build.gradle for reference).

By default Countly SDK uses FCM as push notification provider. If FCM is not present in the system, Countly would try to get HMS token instead. It's possible to alter this behaviour by supplying HMS as a preferred provider:

CountlyConfigPush countlyConfigPush = new CountlyConfigPush(this).setProvider(Countly.CountlyMessagingProvider.HMS);
CountlyPush.init(countlyConfigPush);

Integration

To have the best experience with push notifications, the SDK should be initialized in your Application subclass' "onCreate" method. Android O and later models require the use of NotificationChannels. Use CountlyPush.CHANNEL_ID for Countly-displayed notifications:

public class App extends Application {

  @Override
  public void onCreate() {
    super.onCreate();

    if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.O) {

      // Register the channel with the system; you can't change the importance
      // or other notification behaviors after this
      NotificationManager notificationManager = (NotificationManager) getSystemService(NOTIFICATION_SERVICE);
      if (notificationManager != null) {
        // Create the NotificationChannel
        NotificationChannel channel = new NotificationChannel(CountlyPush.CHANNEL_ID, getString(R.string.countly_hannel_name), NotificationManager.IMPORTANCE_DEFAULT);
        channel.setDescription(getString(R.string.countly_channel_description));
        notificationManager.createNotificationChannel(channel);
      }
    }

    CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL)
      .setLoggingEnabled(true);
    Countly.sharedInstance().init(config);

    CountlyConfigPush countlyConfigPush = new CountlyConfigPush(this);
    CountlyPush.init(countlyConfigPush);
    FirebaseInstanceId.getInstance().getInstanceId()
      .addOnCompleteListener(new OnCompleteListener<InstanceIdResult>() {
        @Override
        public void onComplete(@NonNull Task<InstanceIdResult> task) {
          if (!task.isSuccessful()) {
            Log.w(TAG, "getInstanceId failed", task.getException());
            return;
          }

          // Get new Instance ID token
          String token = task.getResult().getToken();
            CountlyPush.onTokenRefresh(token);
          }
      });
  }
}

Please note that the second parameter in CountlyConfigPush() call defines whether a particular device would be handled as a test setup or in production. It's quite handy to separate test devices from production ones by changing CountlyMessagingMode, so you could test your notifications before sending them to all your users.

You should add this permission entry into your app manifest:

<uses-permission android:name="${applicationId}.CountlyPush.BROADCAST_PERMISSION" />

Additional Intent Redirection checks

Intent Redirection Vulnerability is an issue that lets your app allow malicious apps to access private app components or files. Google removes apps from Google Play that is susceptible to Intent Redirection Vulnerability. For Push Notifications, we are also using Intent Redirection in our SDK, so for that reason, we have also implemented additional Intent Redirection protection.

You can set the additional intent redirection check to true for intent redirect security.

CountlyPush.useAdditionalIntentRedirectionChecks = true;

If these are enabled then the SDK will enforce additional security checks. More info can be found here

If, for some reason, the 'activity name' does not start with the 'application package name' (for e.g if you are using Android Product/Build Flavors to create multiple apps with the same code base), then you need to provide the additional allowed class and package names for Intent Redirection manually.

You can set the allowed package and class names for Intent Redirection using this call:

List<String> allowedClassNames = new ArrayList<>();
allowedClassNames.add("MainActivity");
List<String> allowedPackageNames = new ArrayList<>();
allowedPackageNames.add(getPackageName());

CountlyConfigPush countlyConfigPush = new CountlyConfigPush(this)
  .setAllowedIntentClassNames(allowedClassNames)
  .setAllowedIntentPackageNames(allowedPackageNames);
CountlyPush.init(countlyConfigPush);

Please follow provider-specific instructions for Firebase and / or Huawei Push Kit below.

Firebase

Before implementing FCM to your application you would need to get Push Notification credentials from your Firebase Console and upload them to your Countly server. (If you have not done that already you can follow this guide.)

Integrating FCM into Your App

Please review our Demo app for a complete integration example.

Once you have followed the Google's guide for Adding Firebase to your project, setting up the Countly FCM is quite easy.

Adding dependencies

Add the following dependency to your build.gradle (use latest Firebase version):

//latest firebase-messaging version that is available
implementation 'com.google.firebase:firebase-messaging:23.1.2'

Now, we will need to add the Service. Add a service definition to your AndroidManifest.xml:

<service android:name=".DemoFirebaseMessagingService">
  <intent-filter>
    <action android:name="com.google.firebase.MESSAGING_EVENT" />
  </intent-filter>
</service>

... and add a class for it as well (for Flutter and React-Native project this step is not needed as the SDK adds the service files implicitly):

public class DemoFirebaseMessagingService extends FirebaseMessagingService {
  private static final String TAG = "DemoMessagingService";

  @Override
  public void onNewToken(@NotNull String token) {
    super.onNewToken(token);

    Log.d("DemoFirebaseService", "got new token: " + token);
    CountlyPush.onTokenRefresh(token);
  }

  @Override
  public void onMessageReceived(@NotNull RemoteMessage remoteMessage) {
    super.onMessageReceived(remoteMessage);

    Log.d("DemoFirebaseService", "got new message: " + remoteMessage.getData());

    // decode message data and extract meaningful information from it: title, body, badge, etc.
    CountlyPush.Message message = CountlyPush.decodeMessage(remoteMessage.getData());

    if (message != null && message.has("typ")) {
      // custom handling only for messages with specific "typ" keys
      message.recordAction(getApplicationContext());
      return;
    }

    Intent notificationIntent = null;
    if (message.has("anotherActivity")) {
      notificationIntent = new Intent(getApplicationContext(), AnotherActivity.class);
    }

    Boolean result = CountlyPush.displayMessage(getApplicationContext(), message, R.drawable.ic_message, notificationIntent);
    if (result == null) {
      Log.i(TAG, "Message wasn't sent from Countly server, so it cannot be handled by Countly SDK");
    } else if (result) {
      Log.i(TAG, "Message was handled by Countly SDK");
    } else {
      Log.i(TAG, "Message wasn't handled by Countly SDK because API level is too low for Notification support or because currentActivity is null (not enough lifecycle method calls)");
    }
  }

  @Override
  public void onDeletedMessages() {
    super.onDeletedMessages();
  }
}

This class is responsible for token changes and message handling logic. Countly provides default UI for your notifications, which would display a Notification, if your app is in the background, or Dialog, if your app is active. It will also automatically report button clicks back to the server for Actioned metric conversion tracking. However, it is completely up to you, whether you would like to use this class or not. Let's have an overview of the onMessageReceived method:

  1. It calls CountlyPush.decodeMessage() to decode a message from the Countly-specific format. In this way, you'll have a method of accessing standard fields, such as a badge, URL, or your custom data keys.
  2. Then it checks if the message has a typcustom data key, and if it does, it only records the Actioned metric. Let's assume your custom notification is to preload some data from a remote server. Our demo app has a more in-depth scenario for this case.
  3. In case the message also has anotherActivity custom data key, it creates a notificationIntent to launch the activity, named AnotherActivity. This intent is only used as default content intent for the user tap on a Notification. It is not used forDialog.
  4. Then the service calls CountlyPush.displayMessage()to perform a standard Countly notification displaying logic - Notification, assuming your app is in the background or not running, and the Dialog is in the foreground. Note that this method takes an int resource parameter. It must be compatible with the corresponding version of the Android notification small icon.

Apart from that which is listed above, the SDK also exposes methods CountlyPush.displayNotification() & CountlyPush.displayDialog() in case you only need Notification and don't want Dialog or vice versa.

This is an example of a push notification payload sent from the Countly server:

{
  collapse_key: “collapse_key”, // if present
  time_to_live: 123,
  data: {
    message: “message string”, // if present
    title: “title string”, // if present
    sound: “sound string”, // if present
    badge: 123, // if present
    c.i: “message id string”,
    c.l: “http://message-wide-url”, // if present
    c.m: “http://rich.media.url.jpg”, // if present
    c.s: “true”, // if sound & message absent
    c.b: [ // if present
      {t: “Button 1 title”, l: “http://button.1.url”},
      {t: “Button 2 title”, l: “http://button.2.url”} // if present
    ],
    // any other data properties if present
  }
}

Huawei Push Kit

Before implementing HMS to your application you would need to get Push Notification credentials for the Push Kit and upload them to your Countly server. (If you have not done that already you can follow this guide.)

Integrating HMS into Your App

HMS implementation in Countly SDK looks very much like FCM: add dependencies, add service definition and the service class. Please refer to our Demo app for a reference implementation. Assuming you've already integrated HMS Core into your app, all you need to do is add a dependency into build.gradle (use latest dependency version!):

implementation 'com.huawei.hms:push:4.0.3.301'

... add service definition into AndroidManifest.xml:

<service
  android:name=".DemoHuaweiMessagingService"
  android:exported="false">
  <intent-filter>
    <action android:name="com.huawei.push.action.MESSAGING_EVENT" />
  </intent-filter>
</service>

... and the service itself:

public class DemoHuaweiMessagingService extends HmsMessageService {
  private static final String TAG = "DemoHuaweiMessagingService";

  @Override
  public void onNewToken(String token) {
    super.onNewToken(token);

    CountlyPush.onTokenRefresh(token, Countly.CountlyMessagingProvider.HMS);
  }

  @SuppressLint("LongLogTag")
  @Override
  public void onMessageReceived(RemoteMessage remoteMessage) {
    super.onMessageReceived(remoteMessage);

    Log.d(TAG, "got new message: " + remoteMessage.getDataOfMap());

    // decode message data and extract meaningful information from it: title, body, badge, etc.
    CountlyPush.Message message = CountlyPush.decodeMessage(remoteMessage.getDataOfMap());
    if (message == null) {
      Log.d(TAG, "Not a Countly message");
      return;
    }

    if (message.has("typ")) {
      // custom handling only for messages with specific "typ" keys
      if (message.data("typ").equals("download")) {
        message.recordAction(getApplicationContext());
        return;
      } else if (message.data("typ").equals("promo")) {
        return;
      }
    }

    Intent intent = null;
    if (message.has("another")) {
      intent = new Intent(getApplicationContext(), ActivityExampleOthers.class);
    }
    Boolean result = CountlyPush.displayMessage(getApplicationContext(), message, R.drawable.ic_message, intent);
    if (result == null) {
      Log.i(TAG, "Message doesn't have anything to display or wasn't sent from Countly server, so it cannot be handled by Countly SDK");
    } else if (result) {
      Log.i(TAG, "Message was handled by Countly SDK");
    } else {
      Log.i(TAG, "Message wasn't handled by Countly SDK because API level is too low for Notification support or because currentActivity is null (not enough lifecycle method calls)");
    }
  }
}

... which is almost identical to the FCM demo service.

Customizing Push Messages

Custom Notification Sound

If you would like to use a custom sound in your push notifications, they must be present on the device. They cannot be linked from the internet.

For you to use a custom notification sound, there are 2 things you will need to do.

First, you will need to prepare the URI that will link to the resource on your device. It would look something like this:

String soundUri = ContentResolver.SCHEME_ANDROID_RESOURCE + "://"+ getApplicationContext().getPackageName() + "/" + R.raw.notif_sound;

You would then send this URI as part of the push notification, using the "Send sound" field. This should cover devices with the Android SDK version less than 26.

For devices with the SDK version 26+, you will also need to provide this URI during the notification channel setup. It would look something like this:

AudioAttributes audioAttributes = new AudioAttributes.Builder()
  .setContentType(AudioAttributes.CONTENT_TYPE_SONIFICATION)
   .setUsage(AudioAttributes.USAGE_NOTIFICATION)
   .build();

channel.setSound(soundUri, audioAttributes);

More info about that here: https://stackoverflow.com/questions/48986856/android-notification-setsound-is-not-working

Automatic Message Handling

Countly handles most common message handling tasks for you. For example, it generates and shows Notification or Dialog and tracks conversion rates automatically. In most cases, it’s not necessary for you to know how it works, but if you would like to customize the behavior or exchange it with your own implementation, here is a more in-depth explanation of what it does.

First, the received notification payload is analyzed and, if it's a Countly notification (if it has a "c" dictionary in the payload), it processes it. Otherwise, or if the notification analysis says it is a Data-only notification (you're the one responsible for message processing), it does nothing.

Next, it automatically makes callbacks to the Countly Messaging server to calculate the number of open push notifications which got open and the number of notifications with positive reactions.

Here are the explanations of common usage scenarios that are handled automatically:

  • It doesn't do anything, apart from conversion tracking if you specify it as a Data-only notification in the dashboard. This effectively sets a special flag in the message payload, so you may process it on your own.
  • It displays a Notification whenever a message arrives, and your application is in the background.
  • It displays Dialog when a new message arrives, and your application is in the foreground.
  • It displays Dialog when a new message with an action arrives (open URL), and the user responds to it by swiping or tapping the notification.

A Dialog always has a message, but the set of displayed buttons depends on the message type:

  • It displays a single ‘Cancel’ button for notifications without any actions (only a text message).
  • For notifications with a URL (for instance, you ask the user to open a link to some blog post), it displays both the ‘Cancel’ & ‘Open’ buttons.
  • It displays the corresponding buttons for notifications with custom buttons.

Deep Links

When using Countly push notifications, you may benefit from Android deep links in your application for the buttons you provide. Those are basically links for specific activities of your application. A link may either be a generic ‘http’ link, such as http://www.oneexample.com/survey, or a link with a custom URI (uniform resource indicator) scheme, such as otherexample://things.

In order for Android deep links to work, you will need to specify the intent filters in your application's manifest for the specific groups of links you would like to use.

A deeper guide on how to configure your application to use deep links may be found here.

Handling Push Callbacks

When receiving a push notification, the user may click the notification directly or they may click the button. When a user clicks anywhere on the push notification, an intent is launched to open the provided link. This may be a web page URL or a deep link. If you have configured your app, so that opening this intent will open an activity of your app, it should be possible to track which button was pressed.

There is also the option to add additional metadata to those intents. The included meta information contains data, such as which button was pressed, which link was given in the notification, the title, and the message of the notification.

This functionality is disabled by default, and the additional metadata might be added as extras to the intent.

In order to enable this functionality, you will need to call the following function before initializing Countly messaging:

countlyConfig.setPushIntentAddMetadata(true);

To access those extras from the intent, you should use these names:

ProxyActivity.intentExtraButtonLink
ProxyActivity.intentExtraMessageText
ProxyActivity.intentExtraMessageTitle
ProxyActivity.intentExtraWhichButton

To read the extra from the intent, you would use something similar to this:

String buttonUrl = intent.getStringExtra(ProxyActivity.intentExtraButtonLink);

You've probably noticed that we used Countly.CountlyMessagingMode.TEST in our example. That is because we are currently building the application only for testing purposes. Countly separates users who run apps built for test and for release. This way you'll be able to test messages before sending them to all your users. When releasing your app, please use Countly.CountlyMessagingMode.PRODUCTION.

Setting up Credentials

To use Push Notifications in your application you would need to acquire credentials from the PN service of your choice (Firebase or Huawei) and then upload these credentials to your Countly server.

Acquiring Credentials

Firebase

In order to be able to send notifications through FCM, Countly server needs a FCM server key. In order to get one, open Project settings in Firebase console:

Select Cloud Messaging tab

Huawei

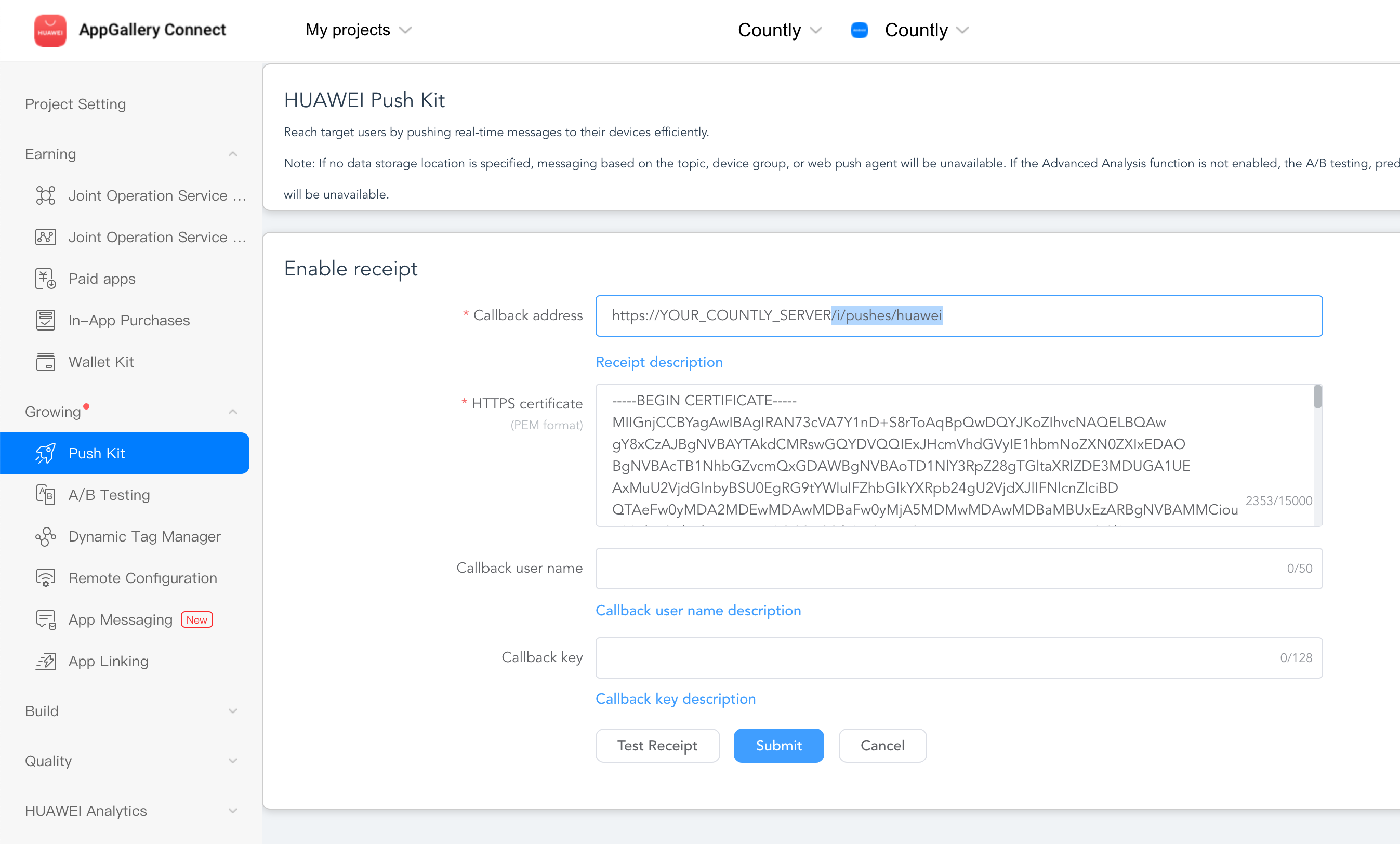

Assuming you have followed Huawei's guide of setting up an application, next step would be to enable PushKit. Then enable Receipt status:

  • enter https://YOUR_COUNTLY_SERVER/i/pushes/huawei into the callback address field, while replacing YOUR_COUNTLY_SERVER with actual server address;
  • and enter your certificate in PEM format (only your certificate, without the rest of the chain; usually first one in openssl s_client -connect YOUR_COUNTLY_SERVER:443 -showcerts).


Then you'd need to get your App ID & App secret from AppGallery Connect -> My Apps:


Setting up the Dashboard

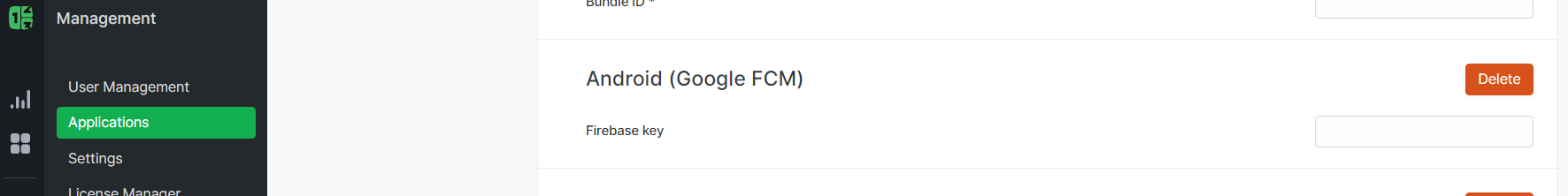

Firebase

Copy & paste the FCM keys you get from your Firebase console into Management > Applications >  Push Notifications > Google FCM credentials upload form in your Countly server and press “Save changes”:

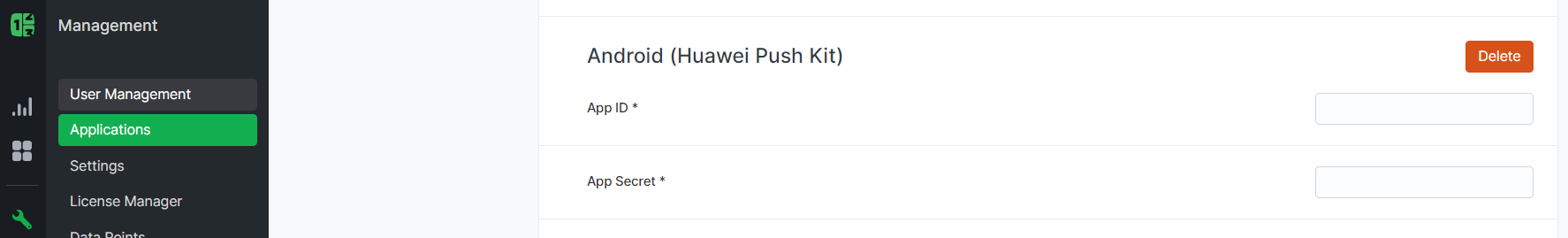

Huawei

Copy your App ID & the secret you got from your Huawei app gallery and paste it into Management > Applications > Push Notifications > Huawei Push Kit upload form in your Countly server and press “Save changes”:


User Location

While integrating this SDK into your application, you might want to track your user location. You could use this information to better know your app’s user base or to send them tailored push notifications based on their coordinates. There are 4 fields that may be provided:

  • Country code in the two-letter, ISO standard
  • City name (must be set together with the country code)
  • Latitude and longitude values separated by a comma, e.g. "56.42345,123.45325"
  • Your user’s IP address

Setting Location

During init you can set location info that will be sent during the start of the user session:

config.setLocation(countryCode, city, gpsCoordinates, ipAddress);

Note that the ipAddress will only be updated if set through the init process.

//set user location
String countryCode = "us";
String city = "Houston";
String latitude = "29.634933";
String longitude = "-95.220255";
String ipAddress = null;

Countly.sharedInstance().setLocation(countryCode, city, latitude + "," + longitude, ipAddress);

When those values are set, a separate request will be created to send them sent. Except for ip address, because Countly Server processes IP address only when starting a session.

If you don't want to set specific fields, set them to null.

Disabling Location

Also during init, you can disable location:

config.setDisableLocation();

Users might want to opt-out of location tracking. To do so, call:

//disable location
Countly.sharedInstance().disableLocation();

This action will erase the cached location data from the device and the server.

Remote Config

Remote config allows you to modify how your app functions or looks by requesting key-value pairs from your Countly server. The returned values may be modified based on the user properties. For more details, please see the Remote Config documentation.

Once downloaded, Remote config values will be saved persistently and available on your device between app restarts unless they are erased.

The two ways of acquiring remote config data are enabling automatic download triggers or manual requests.

If a full download of remote config values is performed, the previous list of values is replaced with the new one. If a partial download is performed, only the retrieved keys are updated, and values that are not part of that download stay as they were. A previously valid key may return no value after a full download.

Downloading Values

Automatic Remote Config Triggers

Automatic remote config triggers have been turned off by default; therefore, no remote config values will be requested without developer intervention.

The automatic download triggers that would trigger a full value download are:

  • when the SDK has finished initializing
  • after the device ID is changed without merging
  • when user gets out of temp ID mode
  • when 'remote-config' consent is given after it had been removed before (if consents are enabled)

To enable the automatic triggers, you have to call enableRemoteConfigAutomaticTriggers on the configuration object you will provide during init.

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.enableRemoteConfigAutomaticTriggers(); // necessary to enable the feature
Countly.sharedInstance().init(config);

Another thing you can do is to enable value caching with the enableRemoteConfigValueCaching flag. If all values were not updated, you would have metadata indicating if a value belongs to the old or current user.

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.enableRemoteConfigValueCaching();
Countly.sharedInstance().init(config);

Manual Calls

There are three ways to trigger remote config value download manually:

  • Manually downloading all keys
  • Manually downloading specific keys
  • Manually downloading, omitting (everything except) keys.

Each of these calls also has an optional parameter that you can provide a RCDownloadCallback to, which would be triggered when the download attempt has finished.

dowloadAllKeys is the same as the automatically triggered update - it replaces all stored values with the ones from the server (all locally stored values are deleted and replaced with new ones).

Or you might only want to update specific key values. To do so, you will need to call downloadSpecificKeys to downloads new values for the wanted keys. Those are provided with a String array.

Or you might want to update all the values except a few defined keys. To do so,  call downloadOmittingKeys would update all values except the provided keys. The keys are provided with a String array.

All Keys Certain Keys Omit Keys
Countly.sharedInstance().remoteConfig().downloadAllKeys(new RCDownloadCallback() {
  @Override
  public void callback(RequestResult rResult, String error, boolean fullValueUpdate, Map<String, RCData> downloadedValues) {
    if (rResult == RequestResult.Success) {
      // do sth
    } else {
      // do sth
    }
  }
});

When making requests with an "inclusion" or "exclusion" array, if those arrays are empty or null, they will function the same as a dowloadAllKeys request and will update all the values. This means it will also erase all keys not returned by the server.

Accessing Values

To get a stored value, call getValue with the specified key. This returns an RCData object that contains the value of the key and the metadata about that value's owner. If value in RCData was null then no value was found or the value was null.

Object value_1 = Countly.sharedInstance().remoteConfig().getValue("key_1").value;
Object value_2 = Countly.sharedInstance().remoteConfig().getValue("key_2").value;
Object value_3 = Countly.sharedInstance().remoteConfig().getValue("key_3").value;
Object value_4 = Countly.sharedInstance().remoteConfig().getValue("key_4").value;

int int_value = (int) value_1;
double double_value = (double) value_2;
JSONArray jArray = (JSONArray) value_3;
JSONObject jobj = (JSONObject) value_4;

If you want to get all values together you can use getAllValues which returns a Map<String, RCData>. The SDK does not know the returned value type, so, it will return the Object. The developer then needs to cast it to the appropriate type. The returned values may also be JSONArrayJSONObject, or just a simple value, such as int.

Map<String, RCData> allValues = Countly.sharedInstance().remoteConfig().getAllValues();
int int_value = (int) allValues["key_1"].value ; double double_value = (double) allValues["key_2"].value; JSONArray jArray = (JSONArray) allValues["key_3"].value; JSONObject jobj = (JSONObject) allValues["key_4"].value;

RCData object has two keys: value (Object) and isCurrentUsersData (Boolean). Value holds the data sent from the server for the key that the RCData object belongs to. The isCurrentUsersData is only false when there was a device ID change, but somehow (or intentionally) a remote config value was not updated.

Class RCData {
  Object value;
  Boolean isCurrentUsersData;
}

Clearing Stored Values

At some point, you might like to erase all the values downloaded from the server. You will need to call one function to do so.

Countly.sharedInstance().remoteConfig().clearAll();

Global Download Callbacks

Also, you may provide a global callback function to be informed when the remote config download request is finished with remoteConfigRegisterGlobalCallback during the SDK initialization:

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.remoteConfigRegisterGlobalCallback(RCDownloadCallback callback);
Countly.sharedInstance().init(config);

RCDownloadCallback is called when the remote config download request is finished, and it would have the following parameters:

  • rResult: RequestResult Enum (either Error, Success or NetworkIssue)
  • error: String (error message. "null" if there is no error)
  • fullValueUpdate: boolean ("true" - all values updated, "false" - a subset of values updated)
  • downloadedValues: Map<String, RCData> (the whole downloaded remote config values)
RCDownloadCallback {
  void callback(RequestResult rResult, String error, boolean fullValueUpdate, Map<String, RCData> downloadedValues)
}

downloadedValues would be the downloaded remote config data where the keys are remote config keys, and their value is stored in RCData class with metadata showing to which user data belongs. The data owner will always be the current user.

You can also register (or remove) callbacks to do different things after the SDK initialization. You can register these callbacks multiple times:

// register a callback
Countly.sharedInstance().remoteConfig().registerDownloadCallback(RCDownloadCallback callback);

// remove a callback
Countly.sharedInstance().remoteConfig().removeDownloadCallback(RCDownloadCallback callback);

A/B Testing

Your users' participation in A/B tests can be coupled with or decoupled from the Remote Config feature in multiple ways. Possible ways to enroll or remove your users for A/B tests are listed below.

Enrollment on Download

You can enroll to available experiments when downloading the Remote Config values automatically. To do this you should call enrollABOnRCDownload method on the CountlyConfig object you pass for the initialization:

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.enrollABOnRCDownload ();
Countly.sharedInstance().init(config);

Enrollment on Access

You can enroll to A/B tests while getting RC values from storage. You can use getValueAndEnroll while getting a single value and getAllValuesAndEnroll while getting all values to enroll to the keys that exist. If no value was stored for those keys these functions would not enroll the user. Both of these functions works the same way with their non-enrolling variants mentioned above, namely; getValue and getValues.

Enrollment on Action

To enroll a user into the A/B tests for the given keys you use the following method:

Countly.sharedInstance().remoteConfig().enrollIntoABTestsForKeys(String[] keys);

Here the keys array is the mandatory parameter for this method to work.

Exiting A/B Tests

If you want to remove users from A/B tests of certain keys you can use the following function:

Countly.sharedInstance().remoteConfig().exitABTestsForKeys(String[] keys);

Here if no keys are provided it would remove the user from all A/B tests instead.

User Feedback

There are several ways to receive user feedback: the Star Rating Dialog and the Feedback Widgets (Survey, NPS, Rating).

Star Rating Dialog allows users to give feedback by rating it from 1 to 5. Feedback Widgets (Survey, NPS, Rating) allow for even more textual feedback from users.

Star Rating Dialog

Star-rating integration provides a dialog for receiving users’ feedback about the application. It contains a title, a simple message explaining its uses, a 1-to-5-star meter for receiving users’ ratings, and a dismiss button in case the user does not want to give a rating.

This star rating has nothing to do with the Google Play Store ratings and reviews. It is just for getting brief feedback from users to be displayed on the Countly dashboard. If the user dismisses the star-rating dialog without providing a rating, the event will not be recorded.

The star-rating dialog's title, message, and dismiss button text may be customized through the countly configuration.

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.setStarRatingSessionLimit(LIMIT);
config.setStarRatingCallback(new StarRatingCallback() {
    @Override public void onRate(int rating) {
        Log.i(Countly.TAG, "Rating: " + rating);
    }

    @Override public void onDismiss() {
        Log.i(Countly.TAG, "Rating dialog was dismissed");
    }
});
config.setStarRatingTextTitle("Custom title");
config.setStarRatingTextMessage("Custom message");
config.setStarRatingTextDismiss("Custom dismiss button text");

Countly.sharedInstance().init(config);

The star-rating dialog can be displayed in 2 ways:

  • Manually by the developer
  • Automatically, depending on the session count

In order to display the star-rating dialog manually, you must call the ShowStarRating function. Optionally, you may provide the callback functions. There is no limit on how many times the star-rating dialog may be displayed manually.

//show the star rating without a callback
Countly.sharedInstance().ratings().showStarRating(activity, null);

//show the star rating with a callback
Countly.sharedInstance().ratings().showStarRating(activity, callback)

The star-rating dialog will be displayed automatically when an application's session count reaches the specified limit, i.e. once for each new version of the application. This session count limit may be specified upon initial configuration or through the SetAutomaticStarRatingSessionLimit function. The default limit is 5. Once the star-rating dialog has been displayed automatically, it will not be displayed again, unless a new app version comes along.

You will need to pass the activity context during init to show the automatic star-rating dialog.

//set the rating limit through the configuration
int starRatingLimit = 5;
config.setStarRatingSessionLimit(starRatingLimit);

If you would like to enable the automatic star-rating function, use the SetIfStarRatingShownAutomatically function, it is disabled by default.

//enable automatic star rating
config.setIfStarRatingShownAutomatically(true);

//disable automatic star rating
config.setIfStarRatingShownAutomatically(false);

If you would like to have the star rating shown only once per app's lifetime and not for each new version, use the SetStarRatingDisableAskingForEachAppVersion function.

//disable star rating for each new version
config.setStarRatingDisableAskingForEachAppVersion(true);

//enable star rating for each new version
config.setStarRatingDisableAskingForEachAppVersion(false);

The star-rating callback provides functions for two events. OnRate is called when the user chooses a rating. OnDismiss is called when the user clicks the back button, clicks outside the dialog, or clicks the "Dismiss" button. The callback provided in the init function is only used when displaying the automatic star rating. Only the provided callback will be used for the manual star rating.

StarRatingCallback callback = new StarRatingCallback() {
  @Override
  public void onRate(int rating) {
    //the user rated the app
  }

  @Override
  public void onDismiss() {
    //the star rating dialog was dismissed
  }
};

Feedback Widget

Feedback Widgets is a Countly Enterprise plugin.

It is possible to display 3 kinds of feedback widgets: NPS, Survey, and Rating.

For more detailed information about Feedback Widgets, you can refer to here.

Before any feedback widget can be shown, you need to create them in your Countly dashboard.

After you have created widgets on your dashboard, you can reach the methods to show them from the feedback interface of your Countly instance:

Countly.sharedInstance().feedback()

You can display a random active widget for the widget type you want with one of these methods:

.presentNPS(Context context)
.presentRating(Context context)
.presentSurvey(Context context)

// Example:
Countly.sharedInstance().feedback().presentNPS(this);

If you want to show a specific widget according to its name, ID or one of its tags then you can use these methods:

.presentNPS(Context context, String nameIDorTag)
.presentRating(Context context, String nameIDorTag)
.presentSurvey(Context context, String nameIDorTag)

// Example:
Countly.sharedInstance().feedback().presentNPS(this, "/home-page");

If an empty nameIDorTag is provided it will show the first feedback widget by its type.

If you need to know when the widget you are showing is closed you can use these methods to provide a callback which will be called when the widget closes:

.presentNPS(Context context, String nameIDorTag, FeedbackCallback devCallback)
.presentRating(Context context, String nameIDorTag, FeedbackCallback devCallback)
.presentSurvey(Context context, String nameIDorTag, FeedbackCallback devCallback)

// Example:
Countly.sharedInstance().feedback().presentNPS(this, "MyNetPromoterScore", new ModuleFeedback.FeedbackCallback() {
  @Override public void onClosed() {
    Toast.makeText(ActivityExampleFeedback.this, "The feedback widget was closed", Toast.LENGTH_LONG).show();
  }

  @Override public void onFinished(String error) {
    if (error != null) {
      Toast.makeText(ActivityExampleFeedback.this, "Encountered error while presenting the feedback widget: [" + error + "]", Toast.LENGTH_LONG).show();
    }
  }
});

The "devCallback" parameter has two callbacks: - "onClosed" which will be called when the feedback widget is closed - "onFinished" which will be called on some internal errors and it will direct the error via "error" parameter.

For more in-depth information on retrieving feedback widgets, understanding object structures, or presenting them yourself, please refer to the following resource.

Manual Reporting

There might be some cases where you might want to use the native UI or a custom UI you have created instead of our webview solution. At those times you would want to request all the information related to that widget and then report the result manually.

For a sample integration, have a look at our sample app at our github repo.

Initial steps for manually reporing your widget results are same with the steps you take to display a rating widget. First you would need to retrieve the available widget list with the previously mentioned getAvailableFeedbackWidgets method. After that you would have a list of possible CountlyFeedbackWidget objects. You would pick the widget you want to display and pass that widget object to the function below as the first parameter. Secong paramater is a callback that would return the widget data as first parameter and the error as second:

Countly.sharedInstance().feedback().getFeedbackWidgetData(chosenWidget, new RetrieveFeedbackWidgetData() {
  @Override
  public void onFinished(JSONObject retrievedWidgetData, String error) {

  }
}

Here the retrievedWidgetData would yield to a JSON Object with all of the information you would need to present the widget by yourself.

For how this retrievedWidgetData would look like and in depth information on this topic please check our detailed article here.

After you have collected the required information from your users with the help of the retrievedWidgetData you have recieved, you would then package the responses into a Map<String, Object>, and then pass it (reportedResult) together with the widget object you picked from the retrieved widget list (widgetToReport) and the retrievedWidgetData to report the feedback result with the following call:

//this contains the reported results
Map<String, Object> reportedResult = new HashMap<>();

//
// You would fill out the results here. That step is not displayed in this sample check the detailed documentation linked above
//

//report the results to the SDK
Countly.sharedInstance().feedback().reportFeedbackWidgetManually(widgetToReport, retrievedWidgetData, reportedResult);

If the user has closed the widget, you would report that by passing a "null" as the reported result.

Consent

If consents are enabled, to use Feedback Widgets, you have to provide the 'feedback' and to use Star Rating Dialog you have to provide the 'starRating' consent for these features to work.

User Profiles

User Profiles is a Countly Enterprise plugin and built-in Flex.

User Profiles is a tool for identifying users, their devices, event timelines, and application crash information. It may contain any information you collect or that is collected automatically by the Countly SDK.

You may send user-related information to Countly and let the Countly Dashboard show and segment this data. You may also send a notification to a group of users. For more information about User Profiles, review this documentation

Setting User Properties

In the SDK, the typical workflow involves using the following methods to provide information about the current user:

// Provide multiple properties at once within a map
Countly.sharedInstance().userProfile().setProperties(Map<String, Object> userProperties);

// Provide single user property as key and value
Countly.sharedInstance().userProfile().setProperty(String key, Object value);

These methods allow you to set predefined fields or any custom fields you wish to include. While saving User Profile data by calling Countly.sharedInstance().userProfile().save() is not mandatory; if required, manually saving User Profile data by that call can still be applied. Recorded User Profile data is automatically sent when:

  • An event is recorded
  • A session update occurs
  • The device ID changes

The keys for predefined user data fields are as follows:

Key Type Description
name String User's full name
username String User's nickname
email String User's email address
organization String User's organization name
phone String User's phone number
picture String URL to avatar or profile picture of the user
picturePath String Local path to the user's avatar or profile picture
gender String User's gender as M for male and F for female
byear int User's year of birth as integer

Using "" for strings or a negative number for 'byear' will effectively delete that property.

When providing properties, the following primitive data types are supported: "String," "Integer," "Double," and "Boolean." Additionally, arrays, Lists, and JSONArrays composed of these primitive types are also supported. Please note that no other data types will be recorded.

// Update the user profile with multiple values
Map<String, Object> userInformation = new HashMap<>();
userInformation.put("byear", 2024);
userInformation.put("name", "Beduk");
userInformation.put("level", 56);
userInformation.put("languages", new String[] { "en", "de", "fr" });
userInformation.put("sub_names", Arrays.asList("John", "Doe", "Jane"));
userInformation.put("tags", new JSONArray(Arrays.asList("tag1", "tag2", "tag3")));
// Set user information
// ...

Countly.sharedInstance().userProfile().setProperties(userInformation);
Countly.sharedInstance().userProfile().save();

You may use any key values to be stored and displayed on your Countly backend for custom user properties. Note: keys with . or $ symbols will have those symbols removed.

Modifying Data

Additionally, you may perform different manipulations on your custom data values, such as incrementing the current value on a server or storing an array of values under the same property.

You will find the list of available methods below:

//set one custom properties
Countly.sharedInstance().userProfile().setProperty("test", "test");
//increment used value by 1
Countly.sharedInstance().userProfile().increment("used");
//increment used value by provided value
Countly.sharedInstance().userProfile().incrementBy("used", 2);
//multiply value by provided value
Countly.sharedInstance().userProfile().multiply("used", 3);
//save maximal value
Countly.sharedInstance().userProfile().saveMax("highscore", 300);
//save minimal value
Countly.sharedInstance().userProfile().saveMin("best_time",60);
//set value if it does not exist
Countly.sharedInstance().userProfile().setOnce("tag", "test");
//insert value to array of unique values
Countly.sharedInstance().userProfile().pushUnique("type", "morning");
//insert value to array which can have duplicates
Countly.sharedInstance().userProfile().push("type", "morning");
//remove value from array
Countly.sharedInstance().userProfile().pull("type", "morning");

//send provided values to server
Countly.sharedInstance().userProfile().save();

Orientation Tracking

Tracking of orientation changes is enabled by default. To stop recording your application's orientation changes, you need to disable it on your init object like:

config.setTrackOrientationChanges(false);

You need to add this to all of your activities where you want to track orientation:

android:configChanges="orientation|screenSize"

Inside of your manifest, it would look something like this:

<activity
  android:name=".ActivityExample"
  android:label="@string/activity_name"
  android:configChanges="orientation|screenSize">
</activity>

To finish your setup for orientation tracking, you need to provide an application class to the config object via "setApplication." This will automatically catch orientation changes for all activities connected to the given application class.

Otherwise, you must set up the Android callback to "onConfigurationChanged." In those, you would have to call "Countly.sharedInstance().onConfigurationChanged(newConfig)". You may set it up similarly to this:

@Override
public void onConfigurationChanged (Configuration newConfig){
  super.onConfigurationChanged(newConfig);
  Countly.sharedInstance().onConfigurationChanged(newConfig);
}

Application Performance Monitoring

This SDK provides a few mechanisms for APM. To browse some of the provided functionality, check the returned interface from here:

Countly.sharedInstance().apm()

While using APM calls, you have the ability to provide trace keys by which you can track those parameters in your dashboard. Those keys have to abide by the following regex:

/^[a-zA-Z][a-zA-Z0-9_]*$/

In short, only Latin letters, numbers, and underscores can be used. The key can not start with an underscore or number. The key also has to be shorter than 32 characters.

Custom Traces

Currently, you can use custom traces to record the duration of application processes. At the end of them, you can also provide any additionally gathered data.

The trace key uniquely identifies the thing you are tracking and the same name will be shown in the dashboard. The SDK does not support tracking multiple events with the same key.

To start a custom trace, use:

Countly.sharedInstance().apm().startTrace(String traceKey);

To end a custom trace, use:

Map<String, Integer> customMetric = new HashMap();
customMetric.put("ABC", 1233);
customMetric.put("C44C", 1337);

Countly.sharedInstance().apm().endTrace(String traceKey, customMetric);

The provided Map of integer values that will be added to that trace in the dashboard.

Network Traces

You can use the APM to track your requests.

Call this just before making your network request:

Countly.sharedInstance().apm().startNetworkRequest(String networkTraceKey, String uniqueId);

`NetworkTraceKey` would be a unique identifier of the API endpoint you are targeting. `UniqueId` is an identifier for requests for a specific traceKey. In case you have overlapping network requests, you would have a unique id for each of the requests. `NetworkTraceKey` and `UniqueId` are used as a pair to uniquely identify the request you are making.

Call this after your network request is done:

Countly.sharedInstance().apm().endNetworkRequest(String networkTraceKey, String uniqueId, int responseCode, int requestPayloadSize, int responsePayloadSize);

You would provide the same `NetworkTraceKey` and `UniqueId` as starting the request and then also provided the received response code, sent payload size in bytes, and received payload size in bytes.

Automatic Device Traces

Currently, the Android SDK provides 3 automatic traces:

  • App start time
  • App time in the background
  • App time in foreground

To record app start time you need to implement 3 things.

First, you must enable this feature in config on init:

config.apm.enableAppStartTimeTracking()

Second, you must call `Countly.applicationOnCreate();` right after your application classes `onCreate` like:

public class App extends Application {
  @Override
  public void onCreate() {
    super.onCreate();
    Countly.applicationOnCreate();
    ...
  }
}

Third, you must initialize countly in your apps Application onStart callback.

If you do this, you will get the correct on start times.

App Time in Background / Foreground

Countly will record the time your users spend in the foreground and background. For this to work, your users need to be given any consent and enable foreground/background tracking. You also need to provide your Application class to your config object with "setApplication" during init. Enable this feature on init:

config.apm.enableForegroundBackgroundTracking()

User Consent

In an effort to comply with GDPR Countly provides ways to toggle different Countly features on/off depending on the given consent.

More information about GDPR can be found here.

Setup During Init

The requirement for consent is disabled by default. To enable it, you will have to call setRequiresConsent with true before initializing Countly.

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.setRequiresConsent(true);
Countly.sharedInstance().init(config);

By default, no consent is given. That means that if no consent is enabled, Countly will not work and no network requests related to its features will be sent. When the consent status of a feature is changed, that change will be sent to the Countly server.

For all features, except push, consent is not persistent and will have to be set each time before Countly init. Therefore, the storage and persistence of the given consent falls on the SDK integrator.

Consent for features may be given and revoked at any time, but if it is given after Countly init, some features may only work in part.

If consent is removed, but the appropriate function can't be called before the app closes, it should be done upon the next app start, so that any relevant server-side features may be disabled (such as the reverse geo IP for location).

Feature names in the Android SDK are stored as static fields in the class called CountlyFeatureNames.

The current features are:

* sessions - tracking when, how often and how long users use your app.

*events - allow sending events to the server.

* views - allow the tracking of which views user visits.

*location - allow the sending of location information.

* crashes - allow the tracking of crashes, exceptions, and errors.

*attribution - allow tracking of which campaign did the user come from.

* users - allow the collecting/providing of user information, including custom properties.

*push - allow push notifications.

* starRating - allow their rating and feedback to be sent.

*apm - allow usage of APM features and collection of APM related. data

* feedback - allow to show the survey and nps feedback widgets.

* remoteConfig - allow to download remote config values from your server.

Changing Consent

There are 3 ways of changing feature consent:

  • giveConsent/removeConsent - gives or removes consent to a specific feature.
// give consent to "sessions" feature
Countly.sharedInstance().giveConsent(new String[]{Countly.CountlyFeatureNames.sessions});

// remove consent from "sessions" feature
Countly.sharedInstance().removeConsent(new String[]{Countly.CountlyFeatureNames.sessions});
  • setConsent - set consent to a specific (true/false) value
// give consent to "sessions" feature
Countly.sharedInstance().setConsent(new String[]{Countly.CountlyFeatureNames.sessions}, true);

// remove consent from "sessions" feature
Countly.sharedInstance().setConsent(new String[]{Countly.CountlyFeatureNames.sessions}, false);
  • setConsentFeatureGroup - set consent for a feature group to a specific (true/false) value
// prepare features that should be added to the group
String[] groupFeatures = new String[]{ Countly.CountlyFeatureNames.sessions, Countly.CountlyFeatureNames.location };

String groupName = "featureGroup1";

// give consent to "sessions" and "location" feature with a single consent group call
Countly.sharedInstance().setConsentFeatureGroup(groupName, true);

// remove consent from "sessions" and "location" feature with a single consent group call
Countly.sharedInstance().setConsentFeatureGroup(groupName, false);

Feature Groups

Features may be put into groups. By doing this, you may give/remove consent to multiple features in the same call. They may be created using createFeatureGroup. Those groups are not persistent and must be created on every restart.

// prepare features that should be added to the group
String[] groupFeatures = new String[]{ Countly.CountlyFeatureNames.sessions, Countly.CountlyFeatureNames.location };

// create the feature group
Countly.sharedInstance().createFeatureGroup("groupName", groupFeatures);

Security and Privacy

Parameter Tamper Protection

You may set the optional salt to be used for calculating the checksum of requested data which will be sent with each request, using the &checksum field. You will need to set exactly the same salt on the Countly server. If the salt on the Countly server is set, all requests would be checked for the validity of the &checksum field before being processed.

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.setParameterTamperingProtectionSalt("salt");
Countly.sharedInstance().init(config);

SSL Certificate Pinning

Public key and certificate pinning are techniques that improve communication security by eliminating the threat of man-in-the-middle attack (MiM) in SSL connections.

When you supply a list of acceptable SSL certificates to Countly SDK with either countlyConfig.enablePublicKeyPinning() or countlyConfig.enableCertificatePinning(), it will ensure that connection is made with one of the public keys specified or one of the certificates specified respectively. Using whole certificate pinning is somewhat safer, but using public key pinning is preferred since certificates can be rotated and do expire while public keys don't (assuming you don't change your CA).

Pinning is done during init through the CountlyConfig object.

For more information on how to acquire the public key or the certificate, have a look here.

Here is an example of public key pinning for a example server.

//sample certificate for the countly try server
String[] certificates = new String[] {
  "MIIGnjCCBYagAwIBAgIRAN73cVA7Y1nD+S8rToAqBpQwDQYJKoZIhvcNAQELBQAwgY8xCzAJ"
    + "BgNVBAYTAkdCMRswGQYDVQQIExJHcmVhdGVyIE1hbmNoZXN0ZXIxEDAOBgNVBAcTB1"
    + "NhbGZvcmQxGDAWBgNVBAoTD1NlY3RpZ28gTGltaXRlZDE3MDUGA1UEAxMuU2VjdGln"
    + "byBSU0EgRG9tYWluIFZhbGlkYXRpb24gU2VjdXJlIFNlcnZlciBDQTAeFw0yMDA2MD"
    + "EwMDAwMDBaFw0yMjA5MDMwMDAwMDBaMBUxEzARBgNVBAMMCiouY291bnQubHkwggEi"
    + "MA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQCl9zmATVRwrGRtRQJcmBmA+zc/ZL"
    + "io3YfkwXO2w8u9lnw60J4JpPNn9OnGcxdM+sqbXKU3jTdjY4j3yaA6NlWibq2jU2x6"
    + "HT2sS+I5gFFE/6tO53WqjoMk48i3FkyoJDittwtQrVaRGcP8RjJH0pfXaP+JLrLAgg"
    + "HuW3tCFqYzkWi3uLGVjQbSIRNiXsM3FI0UMEa/x1I3U4hLjMjH28KagZbZLWnHOvks"
    + "AvGLg3xQkS+GSQ+6ARZ2/bGh5O9q4hCCCk0/PpwAXmrOnWtwrNuwHcCDOvuB22JxLd"
    + "t8jQDYrjwtJIvq4Yut8FQPv/75SKoETWWHyxe0x5NsB34UwA/BAgMBAAGjggNsMIID"
    + "aDAfBgNVHSMEGDAWgBSNjF7EVK2K4Xfpm/mbBeG4AY1h4TAdBgNVHQ4EFgQU8uf/ND"
    + "Rt8cu+AwARVIGXPMfxGbQwDgYDVR0PAQH/BAQDAgWgMAwGA1UdEwEB/wQCMAAwHQYD"
    + "VR0lBBYwFAYIKwYBBQUHAwEGCCsGAQUFBwMCMEkGA1UdIARCMEAwNAYLKwYBBAGyMQ"
    + "ECAgcwJTAjBggrBgEFBQcCARYXaHR0cHM6Ly9zZWN0aWdvLmNvbS9DUFMwCAYGZ4EM"
    + "AQIBMIGEBggrBgEFBQcBAQR4MHYwTwYIKwYBBQUHMAKGQ2h0dHA6Ly9jcnQuc2VjdG"
    + "lnby5jb20vU2VjdGlnb1JTQURvbWFpblZhbGlkYXRpb25TZWN1cmVTZXJ2ZXJDQS5j"
    + "cnQwIwYIKwYBBQUHMAGGF2h0dHA6Ly9vY3NwLnNlY3RpZ28uY29tMB8GA1UdEQQYMB"
    + "aCCiouY291bnQubHmCCGNvdW50Lmx5MIIB9AYKKwYBBAHWeQIEAgSCAeQEggHgAd4A"
    + "dQBGpVXrdfqRIDC1oolp9PN9ESxBdL79SbiFq/L8cP5tRwAAAXJwTJ0kAAAEAwBGME"
    + "QCIEErTN/aGJ8LV9brGklKeGAXMg1EN/FUxXDu13kNfXhcAiBrKMYe+W4flPyuLNm5"
    + "jp6FJwtUTZPNpZ+TmM40dRdwjQB0AN+lXqtogk8fbK3uuF9OPlrqzaISpGpejjsSwC"
    + "BEXCpzAAABcnBMncsAAAQDAEUwQwIfEYSpsSDtKpmj9ZmRWsx73G622N74v09JDjzP"
    + "bkg9RQIgUelIqSwqu69JanH7losrqTTsjwNv+3QJBNJ6GxJKkh0AdgBvU3asMfAxGd"
    + "iZAKRRFf93FRwR2QLBACkGjbIImjfZEwAAAXJwTJ0YAAAEAwBHMEUCIQCMBaaQAoua"
    + "97R+z2zONMUq1XsDP5aoAiutZG4XxuQ6wAIgW1p6XS3az4CCqjwbDKxL9qEnw8fWd+"
    + "yLx2skviSsTS0AdwApeb7wnjk5IfBWc59jpXflvld9nGAK+PlNXSZcJV3HhAAAAXJw"
    + "TJ1PAAAEAwBIMEYCIQDg1YFbJPPKDIyrFZJ9rtrUklkh2k/wpgwjDuIp7tPtOgIhAL"
    + "dZl9s/qISsFm2E64ruYbdE4HKR1ZJ0zbIXOZcds7XXMA0GCSqGSIb3DQEBCwUAA4IB"
    + "AQB2Ar1h2X/S4qsVlw0gEbXO//6Rj8mTB4BFW6c5r84n0vTwvA78h003eX00y0ymxO"
    + "i5hkqB8gd1IUSWP1R1ijYtBVPdFi+SsMjUsB5NKquQNlWpo0GlFjRlcXnDC6R6toN2"
    + "QixJb47VM40Vmn2g0ZuMGfy1XoQKvIyRosT92jGm1YcF+nLEHBDr+89apZ8sUpFfWo"
    + "AnCom+8sBGwje6zP10eBbprHyzM8snvdwo/QNLAzLcvVNKP+Sr4H7HKzec3g1+THI0"
    + "M72TzoguJcOZQEI6Pd+FIP5Xad53rq4jCtRGwYrsieH49a3orBnkkJvUKni+mtkxMb"
    + "PTJ7eeMmX9g/0h"
};

CountlyConfig countlyConfig = new CountlyConfig(getApplicationContext(), COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
countlyConfig.enablePublicKeyPinning(certificates);
Countly.sharedInstance().init(countlyConfig);

In case you get a CertificateException with "Public keys didn't pass checks" that means the certificate or public key for the reached server did not match to any one of the provided ones. Usually, it means that your provided certificate is wrong.

In case you still have issues, have a look here.

Using Proguard

The Countly Android SDK does not require specific proguard exclusions and can be fully obfuscated.

If you are using the Huawei Push Kit for Push Notifications, make sure to add these recommended proguard rules

-ignorewarnings
-keepattributes *Annotation*
-keepattributes Exceptions
-keepattributes InnerClasses
-keepattributes Signature
-keepattributes SourceFile,LineNumberTable
-keep class com.huawei.hianalytics.**{*;}
-keep class com.huawei.updatesdk.**{*;}
-keep class com.huawei.hms.**{*;}

For the most up-to-date Huawei Push Kit proguard rules recommendations, have a look here.

More info about proguard, obfuscation, and code shrinking can be found here.

Other Features and Notes

SDK Config Parameters Explained

These are the methods that lets you set values in your Countly config object:

  • setContext(Context context) - Mandatory. Sets Android context.
  • setServerURL(String serverURL) - Mandatory. Sets the URL of the Countly server to submit data to.
  • setAppKey(String appKey) - Mandatory. Sets the app key for the application being tracked.
  • setDeviceId(String deviceID) - Sets the unique ID for the device the app is running on. Null means that Countly will use the OpenUDID generation method.
  • setStarRatingSessionLimit(int starRatingLimit) - Sets the limit after how many sessions the automatic star rating dialog is shown.
  • setStarRatingCallback(StarRatingCallback starRatingCallback) - Sets the callback function that will be called from the automatic star rating dialog.
  • setStarRatingTextTitle(String starRatingTextTitle) - Sets the title text for the star rating dialogs.
  • setStarRatingTextMessage(String starRatingTextMessage) - Sets the message text for the star rating dialogs.
  • setStarRatingTextDismiss(String starRatingTextDismiss) - Sets the dismiss button text for the star rating dialogs.
  • setLoggingEnabled(boolean enabled) - Enables or disables internal debugging logs.
  • enableCrashReporting() - Enables uncaught crash reporting.
  • setViewTracking(boolean enable) - Enables or disables automatic view tracking.
  • setAutoTrackingUseShortName(boolean enable) - Enables or disables the use of short names for automatic activity tracking.
  • setAutomaticViewSegmentation(Map<String, Object> segmentation) - Sets the automatic view segmentation.
  • setAutoTrackingExceptions(Class[] exceptions) - Sets activities to be excluded from automatic view tracking.
  • addCustomNetworkRequestHeaders(Map<String, String> customHeaderValues) - Adds custom header key/value pairs to each request.
  • setPushIntentAddMetadata(boolean enable) - Enables or disables adding metadata to push intents.
  • setRemoteConfigAutomaticDownload(boolean enabled, RemoteConfigCallback callback) - If enabled, automatically downloads the newest remote config values.
  • setRequiresConsent(boolean shouldRequireConsent) - Set if consent should be required.
  • setConsentEnabled(String[] featureNames) - Sets which features are enabled in case consent is required.
  • setHttpPostForced(boolean isForced) - Set the override for forcing to use HTTP POST for all connections to the server.
  • enableTemporaryDeviceIdMode() - Enable temporary device ID mode.
  • setCrashFilterCallback(CrashFilterCallback callback) - Set crash filter callback.
  • setParameterTamperingProtectionSalt(String salt) - Set parameter tampering protection salt.
  • setTrackOrientationChanges(boolean shouldTrackOrientation) - Set track orientation changes.
  • setRecordAllThreadsWithCrash() - Set record all threads with crash.
  • setEnableAttribution() - Enables or disables attribution.
  • enablePublicKeyPinning() - Allows public key pinning by providing a list of SSL certificates.
  • enableCertificatePinning() - Allows certificate pinning by providing a list of SSL certificates.
  • setShouldIgnoreAppCrawlers() - Specifies if the Countly SDK should ignore app crawlers.
  • setAppCrawlerNames() - Specifies the names of app crawlers to be ignored.
  • setEventQueueSizeToSend() - Sets the threshold for event grouping.
  • enableManualSessionControl() - Enables manual session control.
  • setCustomCrashSegment() - Sets custom crash segmentation information to be added to all recorded crashes.
  • setRecordAllThreadsWithCrash() - Sets record all threads with crash.
  • checkForNativeCrashDumps(boolean checkForDumps) - Set the check for native crash dumps.
  • setUpdateSessionTimerDelay(int delay) - Sets the interval for the automatic session update calls (min value 1 sec, max value 10 min).
  • setCountlyStore(CountlyStore store) - Sets the Countly store for use during testing.
  • setDisableUpdateSessionRequests(boolean disable) - Disables periodic session time updates.
  • setIfStarRatingDialogIsCancellable(boolean isCancellable) - Sets if the star rating dialog is cancellable.
  • setIfStarRatingShownAutomatically(boolean isShownAutomatically) - Sets if the star rating should be shown automatically.
  • setStarRatingDisableAskingForEachAppVersion(boolean disableAsking) - Sets if the star rating is shown only once per app lifetime.
  • setApplication(Application application) - Sets the link to the application class.
  • apm.enableAppStartTimeTracking() - Enables the recording of the app start time.
  • setDisableLocation() - Disables location tracking.
  • setLocation(String country_code, String city, String gpsCoordinates, String ipAddress) - Sets location parameters.
  • setMetricOverride(Map<String, String> providedMetricOverride) - Sets the metrics you want to override or additional custom metrics you want to provide. For more information on this, check here.
  • apm.setAppStartTimestampOverride(long appStartTimestampOverride) - Overrides the app start timestamp.
  • apm.enableManualAppLoadedTrigger() - Enables manual trigger of the moment when the app has finished loading.
  • apm.enableForegroundBackgroundTracking() - Enables automatic control of triggers.
  • setLogListener(ModuleLog.LogCallback logCallback) - Adds a log callback that duplicates all logs done by the SDK.
  • setMaxRequestQueueSize(int newMaxSize) - Sets the new maximum size for the request queue.
  • setDirectAttribution(String campaignType, String campaignData) - Reports direct user attribution.
  • setIndirectAttribution(Map<String, String> attributionValues) - Reports indirect user attribution.
  • setUserProperties(Map<String, Object> userProperties) - Provides user properties that would be sent as soon as possible.
  • enableExplicitStorageMode() - If this mode is enabled then the SDK not write the request and event queues to disk until the explicit write signal is given.

Example Integrations

app module is an example integration that is written in Java. It covers most of the functionalities.

app-kotlin module is an example integration that is written in Kotlin.

app-native module is an example demonstration of native crash reporting in Java.

Setting Event Queue Threshold

Events get grouped together and are sent either every minute or after the unsent event count reaches a threshold. By default it is 10. If you would like to change this, call:

config.setEventQueueSizeToSend(6);

Setting Maximum Request Queue Size

When you initialize Countly, you can specify a value for the setMaxRequestQueueSize flag. This flag limits the number of requests that can be stored in the request queue when the Countly server is unavailable or experiencing connection problems.

If the server is down, requests sent to it will be queued on the device. If the number of queued requests becomes excessive, it can cause problems with delivering the requests to the server, and can also take up valuable storage space on the device. To prevent this from happening, the setMaxRequestQueueSize flag limits the number of requests that can be stored in the queue.

If the number of requests in the queue reaches the setMaxRequestQueueSize limit, the oldest requests in the queue will be dropped, and the newest requests will take their place. This ensures that the queue doesn't become too large, and that the most recent requests are prioritized for delivery.

If you do not specify a value for the setMaxRequestQueueSize flag, the default setting of 1,000 will be used.

config.setMaxRequestQueueSize(5000);

Checking If the SDK Has Been Initialized

In case you would like to check if init has been called, you may use the following function:

Countly.sharedInstance().isInitialized();

SDK Internal Limits

Countly SDKs have internal limits to prevent users from unintentionally sending large amounts of data to the server. If these limits are exceeded, the data will be truncated to keep it within the limit. You can check the exact parameters these limits affect from here.

Key Length

Limits the maximum size of all user set keys (default: 128 chars):

CountlyConfig config = new CountlyConfig(getApplicationContext(), COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.sdkInternalLimits.setMaxKeyLength(32);

Value Size

Limits the size of all user-set string segmentation (or their equivalent) values (default: 256 chars):

CountlyConfig config = new CountlyConfig(getApplicationContext(), COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.sdkInternalLimits.setMaxValueSize(128);

Segmentation Values

Limits the amount of user-set segmentation key-value pairs (default: 100 entries):

CountlyConfig config = new CountlyConfig(getApplicationContext(), COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.sdkInternalLimits.setMaxSegmentationValues(50);

Breadcrumb Count

Limits the amount of user-set breadcrumbs that can be recorded (default: 100 entries, exceeding this deletes the oldest one):

CountlyConfig config = new CountlyConfig(getApplicationContext(), COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.sdkInternalLimits.setMaxBreadcrumbCount(50);

Stack Trace Lines Per Thread

Limits the stack trace lines that would be recorded per thread (default: 30 lines):

CountlyConfig config = new CountlyConfig(getApplicationContext(), COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.sdkInternalLimits.setMaxStackTraceLinesPerThread(10);

Stack Trace Line Length

Limits the characters that are allowed per stack trace line (default: 200 chars):

CountlyConfig config = new CountlyConfig(getApplicationContext(), COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.sdkInternalLimits.setMaxStackTraceLineLength(100);

Attribution

This feature is available for the Countly Enterprise, but currently server side support for this is limited.

To report install attribution, you would perform the following request:

Countly.sharedInstance().attribution().recordDirectAttribution("countly", "{'cid':'campaign_id', 'cuid':'campaign_user_id'}");

In the place of "campaign_id" you would put your retrieved campaign ID value, and in place of "campaign_user_id" you would put your campaign user ID.

For information on how to get these install attribution values, we recommend looking into "InstallReferrerClient".

If you would want to record the advertising ID of the user, you would execute the following code with the retrieved value:

Map<String, String> attributionValues = new HashMap<>();
attributionValues.put(AttributionIndirectKey.AdvertisingID, "valid_advertising_id_value");
Countly.sharedInstance().attribution().recordIndirectAttribution(attributionValues);



Forcing HTTP POST

If the data sent to the server is short enough, the SDK will use HTTP GET requests. To override that behavior so that HTTP POST requests are used in all cases, you will need to set "setHttpPostForced" flag as true in your init config.

// enable it at your init config
CountlyConfig config = (new CountlyConfig(appC, COUNTLY_APP_KEY, COUNTLY_SERVER_URL));
config.setHttpPostForced(true);

// or set it to false
config.setHttpPostForced(false);

Custom HTTP Header Values

In case you would like to add custom header key/value pairs to each request sent to the Countly server, you may make the following call:

HashMap<String, String> customHeaderValues = new HashMap<>();
customHeaderValues.put("foo", "bar");

config.addCustomNetworkRequestHeaders(customHeaderValues);

The provided values will override any previously stored value pairs. In case you would like to erase any previously stored pairs, provide null.

Custom Metrics

During some specific circumstances, like beginning a session or requesting remote config, the SDK is sending device metrics.

It is possible for you to either override the sent metrics (like the application version for some specific variant) or provide either your own custom metrics. If you are providing your own custom metrics, you would need your own custom plugin server-side which would interpret it appropriately. If there is no plugin to handle those custom values, they will be ignored. You can set these custom metrics while initializing the Countly SDK.

//provide custom metric values
CountlyConfig config = ... // configuration related to implementation

Map<String, String> metricOverride = new HashMap<>();
metricOverride.put("SomeKey", "123");
metricOverride.put("_app_version", "custom_version-123");

config.setMetricOverride(metricOverride);

For more information on the specific metric keys used by Countly, check here.

Log Listener

Android SDK lets you handle its internal logs by allowing you to provide a callback to listen to its log output. This callback must be put inside the Countly config object with the help of the setLogListener() method. This callback should return two parameters: first, the String log message, and second, the log level enum. Using these two pieces of information, you should be able to do anything you see fit with these logs.

An example usage:


 CountlyConfig config = (new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL))
  .setLoggingEnabled(true)
  .setLogListener(new ModuleLog.LogCallback() {
    @Override public void LogHappened(String logMessage, ModuleLog.LogLevel logLevel) {
      // do something according to the log level
      switch (logLevel) {
        case Verbose:
          // do something
          break;
        case Debug:
          // do something
          break;
        case Info:
          // do something
          break;
        case Warning:
          // do something
          break;
        case Error:
          // do something
          break;
      }
    }
  });

Receiving and Showing Badge Numbers from Push Notifications

While showing badges isn't supported natively for versions before Android O, there are some devices and launchers that support it. Therefore, you may want to implement such a feature in your app. However, not all devices will support badges.

While creating a new message in the messaging overview and preparing its content, there is an optional prompt called "Add iOS badge". You may use this prompt to also send badges to Android devices.

In order to receive this badge number in your application, you must subscribe to the broadcasts about received messages. There you will be informed about all received push notifications using Message and the bundle. The badge number is sent with the key "badge". You may use it to extract the badge number from the bundle received and then use it to display badge numbers with your implementation of choice.

In the example below, we use a badge library called ShortcutBadger, which is used for showing badge notifications on Android devices. You can reach instructions on how to implement it into your Android project here.

/** Register for broadcast action if you need to be notified when Countly message received */
messageReceiver = new BroadcastReceiver() {
  @Override
  public void onReceive(Context context, Intent intent) {
    Message message = intent.getParcelableExtra(CountlyMessaging.BROADCAST_RECEIVER_ACTION_MESSAGE);
    Log.i("CountlyActivity", "Got a message with data: " + message.getData());

    //Badge related things
    Bundle data = message.getData();
    String badgeString = data.getString("badge");
    try {
      int badgeCount = Integer.parseInt(badgeString);

      boolean succeded = ShortcutBadger.applyCount(getApplicationContext(), badgeCount);
      if(!succeded) {
        Toast.makeText(getApplicationContext(), "Unable to put badge", Toast.LENGTH_SHORT).show();
      }
    } catch (NumberFormatException exception) {
      Toast.makeText(getApplicationContext(), "Unable to parse given badge number", Toast.LENGTH_SHORT).show();
    }
  }
};
IntentFilter filter = new IntentFilter();
filter.addAction(CountlyMessaging.getBroadcastAction(getApplicationContext()));
registerReceiver(messageReceiver, filter);

Ignoring App Crawlers

Sometimes server data might be polluted with app crawlers which are not real users, and you would like to ignore them. Starting from the 17.05 release, it's possible to ignore app crawlers by filtering on the app level. The current version does that, using device names. Internally, the Countly SDK has a list of crawler device names. If a device name matches one from that list, no information is sent to the server.

At the moment, that list has only one entry: "Calypso AppCrawler". In the future we might add more crawler device names if such are reported. If you have encountered a crawler that is not on that list, and you would like to ignore it, you may add it to your SDK list yourself by calling addAppCrawlerName.

Currently, the SDK ignores crawlers by default. If you would like to change this setting, use ifShouldIgnoreCrawlers. If you would like to check if the current device was detected as a crawler, use isDeviceAppCrawler. Detection is done in the init function, meaning you would have to add the crawler names before that and perform the check after.

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);

//set that the sdk should ignore app crawlers config.setShouldIgnoreAppCrawlers(true); //set that the sdk should not ignore app crawlers config.setShouldIgnoreAppCrawlers(false); //add app crawler device names to ignore config.setAppCrawlerNames(new String[] { "App Crawler" }); //returns true if this device is detected as a app crawler and false otherwise Countly.sharedInstance().requestQueue().isDeviceAppCrawler();

Interacting with the Internal Request Queue

When recording events or activities, the requests don't always get sent immediately. Events get grouped together and sometimes there is no connection to the server and the requests can't be sent.

There are two ways how to interact with this request queue at the moment.

You can force the SDK to try to send the requests immediately:

//Doing internally stored requests
Countly.sharedInstance().requestQueue().attemptToSendStoredRequests();

This way the SDK will not wait for its internal triggers and it will try to empty the queue on demand.

There are some circumstances where you would want to delete all stored requests. Then you would call:

//Delete all stored requests in queue
Countly.sharedInstance().requestQueue().flushQueues();

Direct Request

This feature allows you to create custom functionality or implement features that the SDK might be lacking at that moment.

This feature should not be used lightly as improper usage can lead to problems.

This exposes a call where you can provide custom key/value pairs with Map<String, String>. These will be added to a base request created by the SDK. The base parameters will have things like time-related fields, device ID, app key, checksums, etc. These base parameters are protected fields and can't be overridden.

If consent would be required then the SDK will make sure that any consent has been given. The SDK will not perform any additional consent checks. It is up to the developer to make sure that they have the right consent to record the information they are trying to record.

These key/value pairs should be of simple string or stringified JSON. The simplest way to pass a stringified JSON is to create a JSONObject/JSONArray and call the toString() function on it to convert it to a stringified JSON.

Map<String, String> requestMap = new HashMap<>();
requestMap.put("city", "Istanbul");
requestMap.put("country_code", "TR");
requestMap.put("ip_address", "41.0082,28.9784");

try {
  JSONObject event = new JSONObject();
  event.putOpt("key", "test");
  event.putOpt("count", "5");
  event.putOpt("sum", "2");
  event.putOpt("dur", "2000");

  JSONObject ffJson = new JSONObject();
  ffJson.putOpt("type", "FF");
  ffJson.putOpt("start_time", 123456789);
  ffJson.putOpt("end_time", 123456789);

  JSONObject skipJson = new JSONObject();
  skipJson.putOpt("type", "skip");
  skipJson.putOpt("start_time", 123456789);
  skipJson.putOpt("end_time", 123456789);

  JSONObject resumeJson = new JSONObject();
  resumeJson.putOpt("type", "resume_play");
  resumeJson.putOpt("start_time", 123456789);
  resumeJson.putOpt("end_time", 123456789);

  JSONArray trickPlay = new JSONArray();
  trickPlay.put(ffJson);
  trickPlay.put(skipJson);
  trickPlay.put(resumeJson);

  JSONObject segmentation = new JSONObject();
  segmentation.putOpt("trickplay", trickPlay);
  event.putOpt("segmentation", segmentation);

  JSONArray events = new JSONArray();
  events.put(event);
  requestMap.put("events",events.toString());
} catch (JSONException e) {
  e.printStackTrace();
}
Countly.sharedInstance().requestQueue().addDirectRequest(requestMap);

Explicit Storage Mode

The Explicit Storage Mode is a feature that allows you to control the frequency of writes to your device's storage.

With this mode enabled, the Countly SDK's request and event queues will be stored only in memory and will not be automatically persisted to storage when changes occur. Instead, the host app must explicitly signal when the queues should be persisted to storage.

Please note that using this mode increases the risk of data loss and data duplication if persistence synchronization is not implemented correctly.

To enable Explicit Storage Mode during initialization, use the following configuration option:

config.enableExplicitStorageMode();

To write the memory queues to storage, use the following method:

Countly.sharedInstance().requestQueue().esWriteCachesToPersistence();

If you want know if any writes were performed, you can also use the following variant. It allows you to set a callback that would inform you if anything was written to storage. If your memory cache state would be the same as your perisent storage state, no writes would be performed.

Countly.sharedInstance().requestQueue().esWriteCachesToPersistence(new ExplicitStorageCallback() {
  @Override public void WriteToStorageFinished(boolean writeWasPerformed) {
    if (writeWasPerformed) {
      Log.d(Countly.TAG, "Memory cache ouf of sync with persistent storage. New state was written to storage.");
    } else {
      Log.d(Countly.TAG, "Memory cache matches persistent storage. No writes were performed.");
    }
  }
});

Like mentioned before, inpropper usage can lead to data loss or data duplication.

Data loss can occur when you have recorded new data and there is no or slow connection to your server. If your app would crash or exit before the SDK is able to send that data or before you had the ability to call esWriteCacheToStorage , that information would be lost.

Data duplication can occur when you have recorded data and have called esWriteCacheToStorage before it is sent to your server. This would then persist the "full" queues to storage. After this point the data would have been successfully sent to your server, but then no call would be made to esWriteCacheToStorage before the app crashes or exits. During the next init of the SDK it would then load the persistent state from storage to memory and try sending those requests. When that would happen, the SDK would attempt to send requests that were already successfully sent to the server.

We recommend using Explicit Storage Mode only in scenarios where reducing the frequency of writes to storage is critical to the performance of your app. In other scenarios, we recommend using the default storage behavior provided by the Countly SDK.

Server Configuration

This is an experimental feature!

You can make your SDK fetch some configurations you have set in your Countly server by setting enableServerConfiguration during init:

config.enableServerConfiguration()

Content Zone

Note: This is an experimental feature available from version 24.7.5!

The Content Zone feature enhances user engagement by delivering various types of content blocks, such as in-app messaging, ads, or user engagement prompts. These content blocks are dynamically served from the content builder on the server, ensuring that users receive relevant and up-to-date information.

To start fetching content from the server, use the following method:

Countly.sharedInstance().contents().enterContentZone()

This call will retrieve and display any available content for the user. It will also regularly check if a new content is available, and if it is, will fetch and show it to the user.

When you want to exit from content zone and stop SDK from checking for available content you can use this method:

Countly.sharedInstance().contents().exitContentZone()

To get informed when a user closes a content you can register a global content callback during SDK initialization:

countlyConfig.contents.setGlobalContentCallback(callback);
interface ContentCallback {
  void onContentCallback(ContentStatus contentStatus, Map<String, Object> contentData);
}

The `contentStatus` will indicate either `COMPLETED` or `CLOSED`.

Experimental Config

Note: This is an experimental feature available from version 24.7.5!

The ConfigExperimental interface provides experimental configuration options for enabling advanced features like view name recording and visibility tracking. These features are currently in a testing phase and might change in future versions.

CountlyConfig config = new CountlyConfig(this, COUNTLY_APP_KEY, COUNTLY_SERVER_URL);
config.experimental.enableViewNameRecording().enableVisibilityTracking();

This class allows enabling two experimental features:

  • Previous Name Recording
  • Visibility Tracking

When you enable previous name recording, it will add previous view name to the view segmentations (cly_pvn) and previous event name to the event segmentations (cly_pen).

countlyConfig.experimental.enablePreviousNameRecording()

When you enable visibility tracking, it will add a parameter (cly_v) to each recorded event's segmentation about the visibility of the app at the time of its recording.

countlyConfig.experimental.enableVisibilityTracking()

A/B Testing Variant Information

You can access all the A/B test variants for your Countly application within your mobile app. This information can be useful while testing your app with different variants. There are four calls you can use for downloading, accessing, and enrolling for your variants.

Downloading Test Variants

You can download a map of all A/B testing parameters (keys) and variants associated with it:

Countly.sharedInstance().remoteConfig().testingDownloadVariantInformation(RCVariantCallback completionCallback)

You can provide an RCVariantCallback (which is optional) to be called when the fetching process ends. Depending on the situation, this would return a RequestResponse Enum (Success, NetworkIssue, or Error) as the first parameter and a String error as the second parameter if there was an error ("null" otherwise). A sample usage would be like this:

Countly.sharedInstance().remoteConfig().TestingDownloadVariantInformation(new RCVariantCallback() {
  @Override
  public void callback(RequestResponse result, String error) {
    if (result == RequestResponse.Success) {
      // do sth after the success
    } else {
      // do sth after failure
    }
  }
});

Accessing Fetched Test Variants

When test variants are downloaded, they are saved to the memory. If the memory is erased, you must download the variants again. So a common flow is to use the fetched values right after fetching them. To access all fetched values, you can use:

Countly.sharedInstance().remoteConfig().testingGetAllVariants()

This would return a Map<String, String[]> where a test's parameter is associated with all variants under that parameter. The parameter would be the key, and its value would be a String Array of variants. For example:

{
  "key_1" : ["variant_1", "variant_2"],
  "key_2" : ["variant_3"]
}

Or instead you can get the variants of a specific key:

Countly.sharedInstance().remoteConfig().testingGetVariantsForKey(String valueKey)

This would only return a String Array (String[]) of variants for that specific key. If no variants were present for a key, it would return an empty array. A typical result would look like this:

["variant_1", "variant_2"]

Enrolling For a Variant

After fetching A/B testing parameters and variants from your server, next you would like to enroll the user to a specific variant. To do this, you can use the following method:

Countly.sharedInstance().remoteConfig().testingEnrollIntoVariant(String keyName, String variantName, RCVariantCallback completionCallback)

Here the 'valueKey' would be the parameter of your A/B test, and 'variantName' is the variant you have fetched and selected to enroll for. The RCVariantCallback callback function is optional and works the same way as explained above in the Downloading Test Variants section.

Drop Old Requests

If you are concerned about your app being used sparsely over a long time frame, old requests inside the request queue might not be important. If, for any reason, you don't want to get data older than a certain timeframe, you can configure the SDK to drop old requests:

config.setRequestDropAgeHours(10)

By using the setRequestDropAgeHours method while configuring the SDK initialization options, you can set a timeframe (in hours) after which the requests would be removed from the request queue. For example, by setting this option to 10, the SDK would ensure that no request older than 10 hours would be sent to the server.

FAQ

What Information is Collected by the SDK

The following description mentions data that is collected by SDK's to perform their functions and implement the required features. Before any of it is sent to the server, it is stored locally. For further information please have a look to the collected informations for all SDKs.

How can I build the Android SDK?

If you need to customize our Android SDK to fit your needs, you may find it here among our Countly Github repositories as an Android Studio project. Modules included in the project are:

Module Name Description
sdk Countly Android SDK.
app Sample app to test sdk
sdk-native Module needed for Native C++ crash reporting
app-native Sample app to test sdk-native

Recently, Android Studio versions have a bug which you may encounter when building your project in Studio. If you see a build error such as SIMPLE: Error configuring, please check your text view for the build Gradle output. If you see this error CMake was unable to find a build program corresponding to "Ninja". CMAKE_MAKE_PROGRAM is not set, then you need to make ninja available in your PATH. If you are using cmake embedded in Studio, ninja may be found in the <sdk_location>/cmake/<cmake_version>/bin directory.

There is a build step for the sdk-native module which takes place outside of Studio. You may find the related code and build scripts in sdk-native/src/cpp_precompilation. We are working on building a breakpad library with an appropriate ndk version to integrate this step into your Studio build. Meanwhile, it seems OK to use the library files in sdk-native/src/main/jniLibs/ that are externally built.

Which Operating Systems are Supported?

Our Android SDK should be able support Android based operating systems without issues. It should also work without any major issues on devices that don't have Google services, for example, on Huawei devices which have the HarmonyOS operating system.

Is it Possible to Use Android SDK with Another Crash SDK?

It should be fine to use Countly together with another crash SDK. If you would like to track caught exception, you would just pass them to both SDKs. When catching uncaught exceptions with both, there are some uncertainties. Although in Android there can be only one uncaught exception handler, you can save the previous handler and when receiving an uncaught exception, pass it also to the saved one. We can't be certain how other SDKs are implemented or if the OS would give enough time to propagate the exception through all handlers. Therefore, if you want to use Countly with another crash SDK, we advise to initialize Countly as the last one.

How Can I Tell Which Countly Android SDK Version I am Using?

The Countly class has a public static string called COUNTLY_SDK_VERSION_STRING that contains the current SDK version. You can access it by calling Countly.COUNTLY_SDK_VERSION_STRING. It would return something similar to "20.11.10".

Looking for help?
